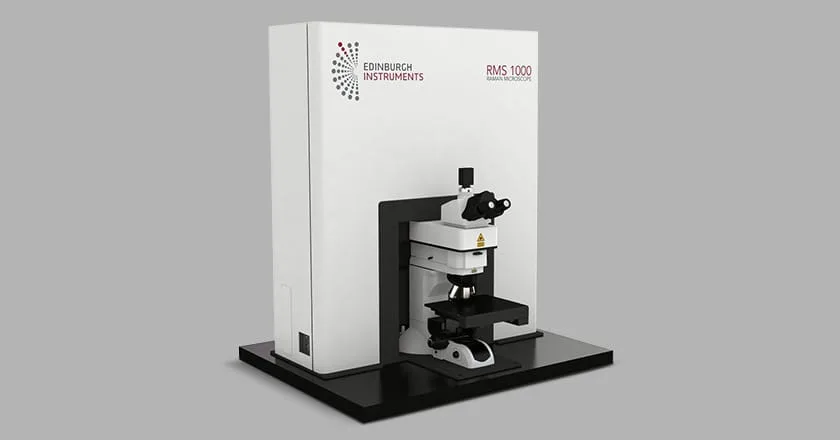

RMS1000: Multimodal Confocal Raman Microscope
Brand: Edinburgh Instruments | Category: Nanotechnology
Research grade multimodal confocal microscope carrying up to five integrated lasers, combining Raman imaging with photoluminescence spectra and fluorescence lifetime imaging in one instrument. The confocal pinhole is fully computer controlled, and a low wavenumber attachment extends coverage down to 5 wavenumbers.
Technical Specifications
| Parameter | Value |
|---|---|
| Integrated laser capacity | Up to 5 narrow-band lasers |
| Spectrograph wavelength range | 200–2200 nm |
| Grating turret | 5 positions |
| Spectral resolution | From <0.1 cm⁻¹, depending on grating, laser and CCD selection |
| Lateral spatial resolution | 0.25 µm, depending on laser and microscope objective |
| Axial spatial resolution | <1 µm, depending on laser and microscope objective |
| Spectral range with low-wavenumber attachment | 5–30,000 cm⁻¹ |
| Dimensions (W × D × H) | From 975 × 610 × 1170 mm |
| Weight | From 114 kg |
Selected manufacturer ratings for RMS1000; the values do not define one standard configuration. Resolution depends on optical choices and the 5 cm⁻¹ endpoint requires the low-wavenumber attachment. Ask for the exact lasers, detectors, enclosure and optional fluorescence configuration in the quotation. Checked 2026-09-29.
