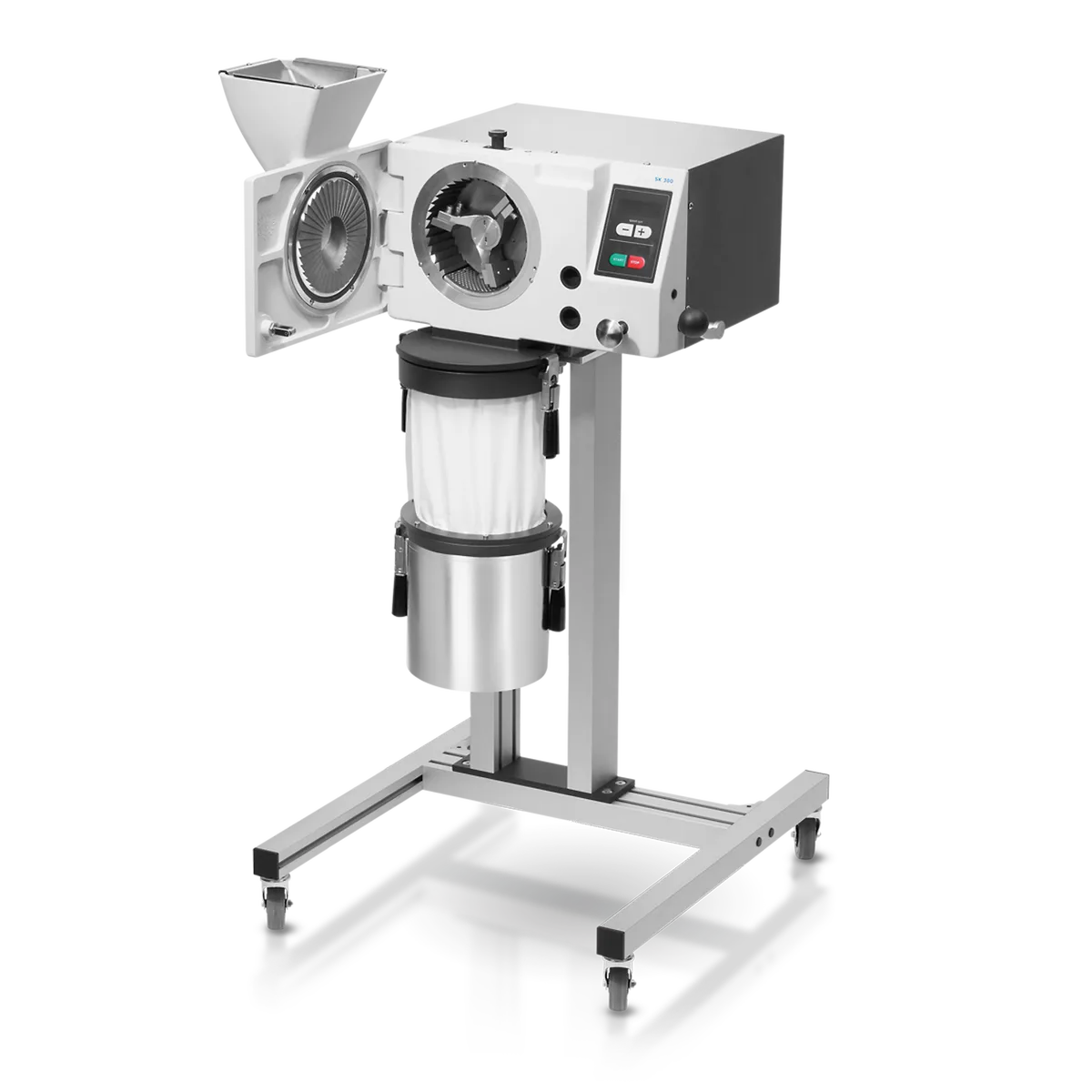

SK 300: Cross Beater Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Cross beater mill for coarse and fine size reduction of medium hard and brittle material such as coal, coke, minerals and slag. It runs from laboratory to pilot plant scale and the adjustable rotor speed with an exchangeable bottom sieve sets the final fineness down to below 100 µm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 25 mm |
| Final fineness | 100 µm |
| Speed at 50 Hz (60 Hz) | 2000 - 4000 min-1 (in steps of 200 min-1) |
| Rotor peripheral speed | 15.5 m/s .. 31 m/s |
| Material of grinding tools | hardened steel, stainless steel, cast iron, steel 1.1740 (for heavy-metal free grinding) |
| Sieve sizes | trapezoid holes 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm ; round holes 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm |
| Collector capacity | 5 l / optional: 30 l |
| Drive power | 1.1 kW |
| Electrical supply data | 200-240 V, 50/60 Hz |
| Power connection | 1-phase |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
