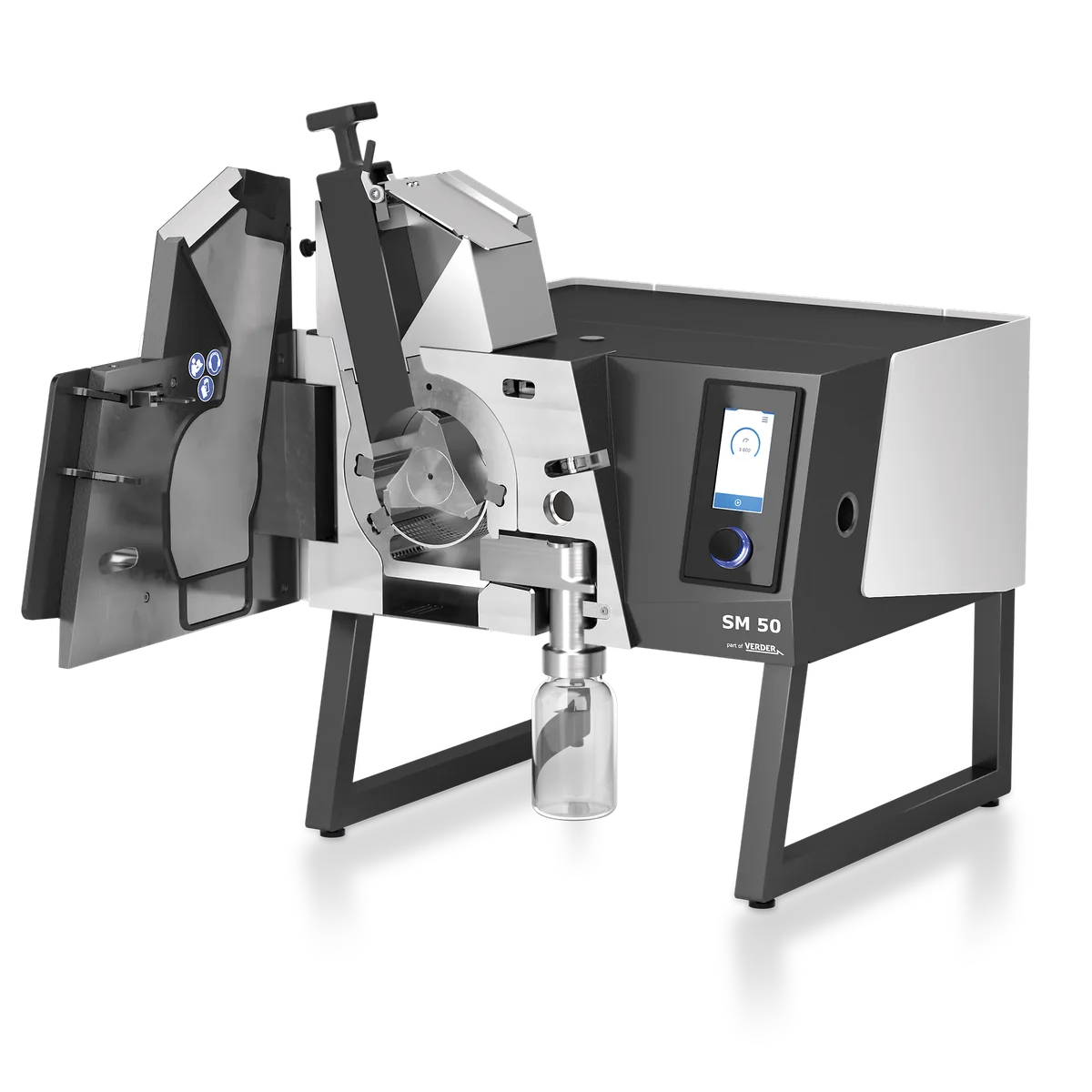

SM 50: Cutting Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Benchtop cutting mill for small quantities of soft, medium hard, tough, elastic and fibrous material such as plastics, textiles and plant matter. The grinding chamber design allows a high proportion of the sample to be recovered, which matters when only a small amount of material is available.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 50 mm |
| Final fineness | 0.25 - 10 mm |
| Speed at 50 Hz (60 Hz) | 500 - 4,000 min-1 |
| Rotor peripheral speed | 4.3 - 27.1 m/s |
| Rotor diameter | 129.5 mm |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 mm ; square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 mm |
| Drive power | 1.5 kW |
| Electrical supply data | 100 V, 110 V, 120 V, 20 A ; 200-230 V, 10 A |
| Power connection | 1-phase |
| W x H x D closed | 565 x 750 x 530 (with base frame and hopper) |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
