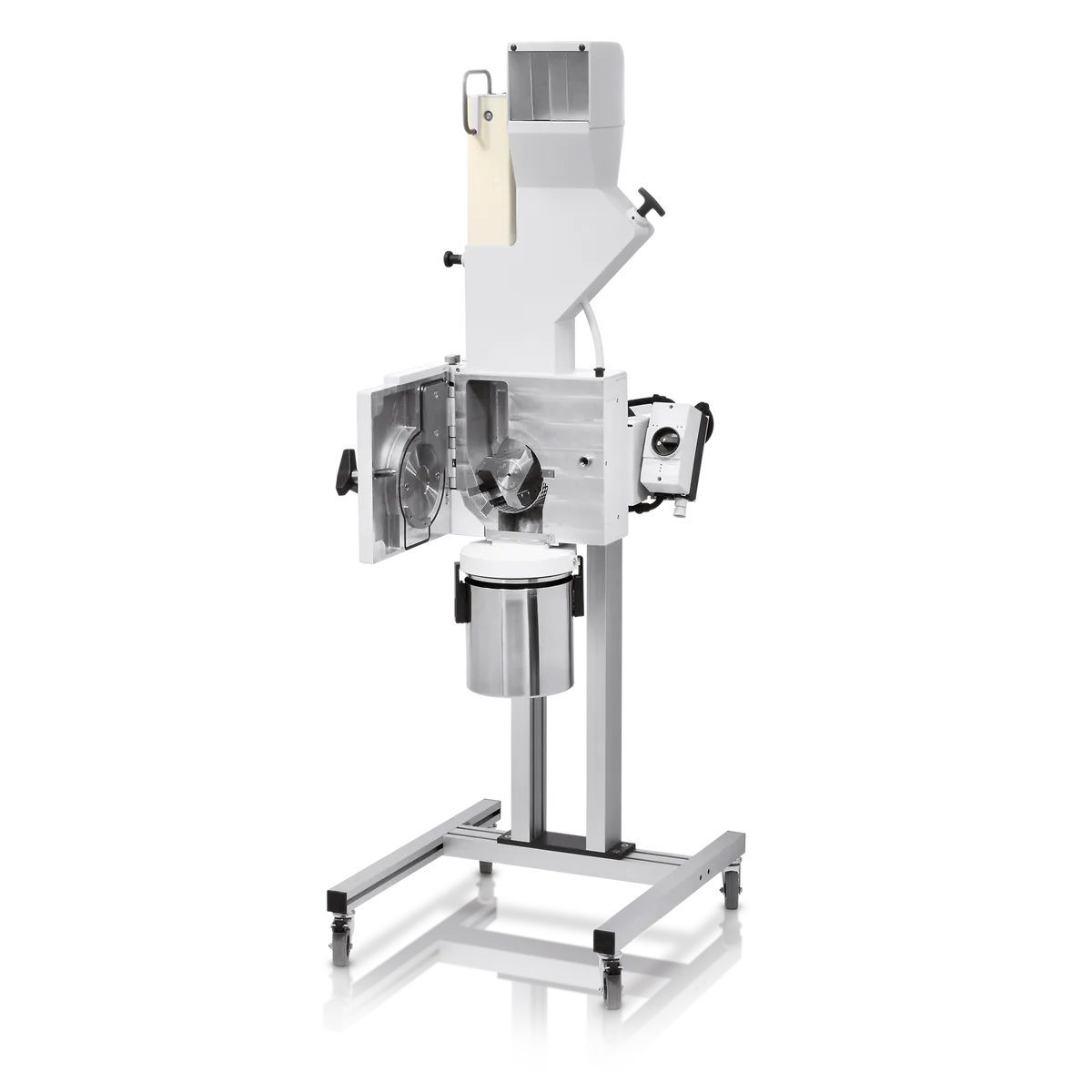

SM 100: Cutting Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Basic model cutting mill for routine size reduction of soft, medium hard, elastic and fibrous material. A fixed 1,500 rpm rotor cuts the sample against stationary knives until it passes the bottom sieve, which sets the final fineness between 0.25 mm and 20 mm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 60 x 80 mm |
| Final fineness | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 1,500 min-1 |
| Rotor peripheral speed | 9.4 - 11.4 m/s |
| Rotor diameter | 129.5 mm |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm ; square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Drive power | 1,5 kW |
| Power connection | 3-phase |
| W x H x D closed | 582 x 1675 x 700 mm (with base frame and standard hopper) |
| Net weight | ~ 73 kg without hopper, rotor and base frame |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
