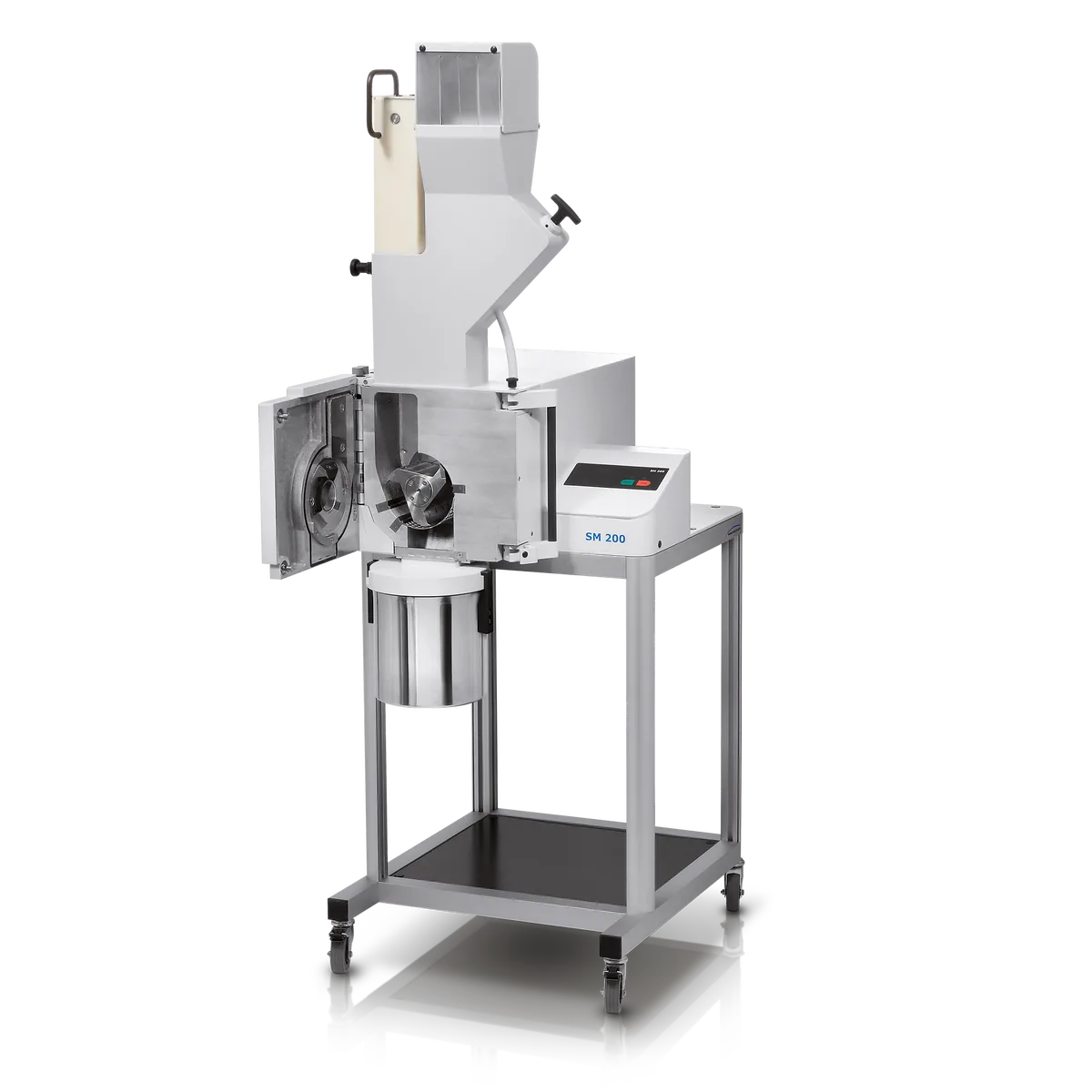

SM 200: Cutting Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Standard cutting mill for preliminary size reduction of a wide range of soft, medium hard, tough, elastic and fibrous materials. It has a stronger drive than the SM 100 and a chamber arranged for straightforward cleaning between samples, which is the usual bottleneck when running mixed material types.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 60 x 80 mm |
| Final fineness | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 1,500 min-1 |
| Rotor peripheral speed | 9.4 - 11.4 m/s |
| Rotor diameter | 129.5 mm |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm ; square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Drive power | 2.2 kW |
| Power connection | 3-phase |
| W x H x D closed | 576 (1090 opened) x 1675 x 760 mm (with base frame and standard hopper) |
| Net weight | ~ 90 kg without hopper |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
