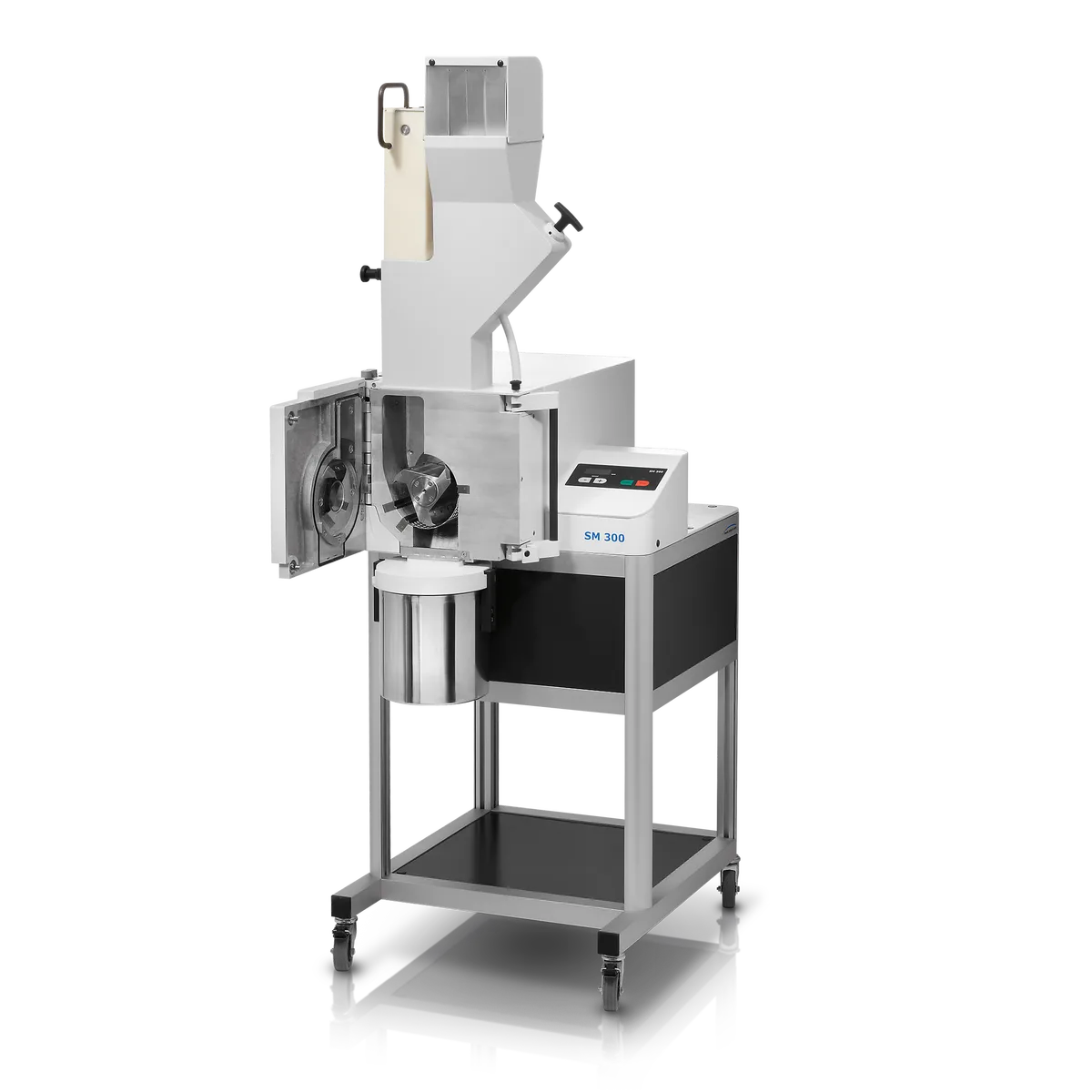

SM 300: Cutting Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
High performance cutting mill with RES technology, in which a flywheel stores energy and releases it into the cut, so the rotor holds speed through tough material that would stall a conventional mill. Speed is adjustable from 100 to 3000 rpm, which lets heat sensitive samples be run slowly.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 60 x 80 mm |
| Final fineness | 0.25 - 20 mm |
| Speed at 50 Hz (60 Hz) | 100 - 3000 min-1 |
| Rotor peripheral speed | 4.7 - 20.3 m/s |
| Rotor diameter | 129.5 mm |
| Sieve sizes | trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm ; square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Drive power | 3 kW with flywheel mass ~ 28.5 kg |
| Power connection | 1-phase |
| W x H x D closed | 576 (1080 opened) x 1677 x 750 mm (with base frame and universal hopper) |
| Net weight | ~ 160 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
