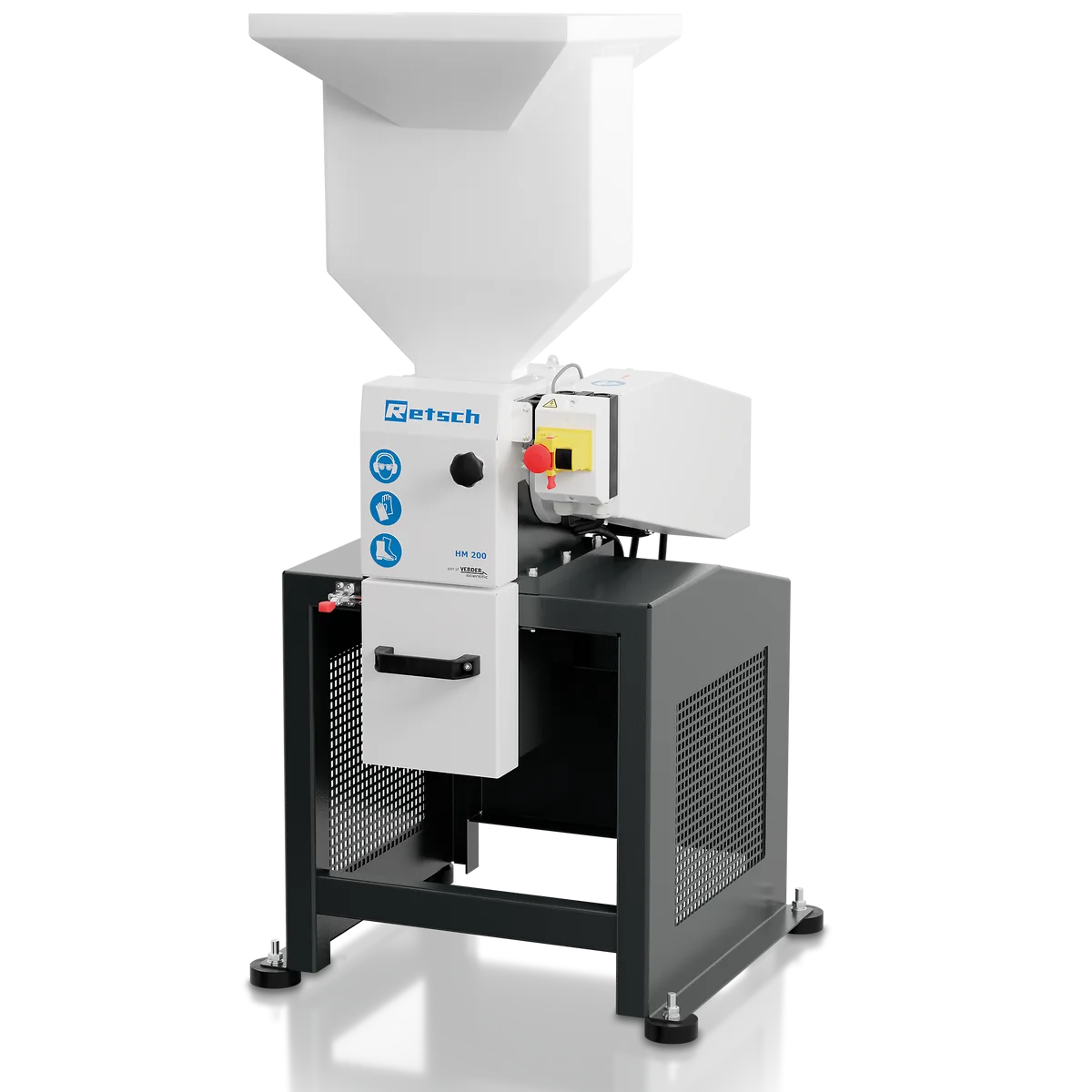

HM 200: Hammer Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Hammer mill for crushing and pulverising large sample volumes of medium hard, hard, brittle, tough and fibrous material at up to 1500 kg per hour. Feed material is reduced by impact from swinging hammers and passes a bottom sieve at below 0.8 mm. Its size and throughput place it between laboratory and pilot plant duty.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 100 mm |
| Final fineness | 0.8 mm |
| Batch size / feed quantity | up to 30 l depending on collecting receptacle |
| Speed at 50 Hz (60 Hz) | 3000 min-1 (3500 min-1) |
| Rotor peripheral speed | 31.4 m/s |
| Rotor diameter | 200 mm |
| Material of grinding tools | hardened steel 1.0503 (hammers); steel 1.0330 (sieves) |
| Sieve sizes | 2 / 3 / 4 / 5 / 6 / 8 / 10 / 15 / 40 mm |
| Collector capacity | 10 l, 30 l, continuous outlet |
| Drive power | 1.5 kW |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Materials Testing Lab
- SM 50: Cutting Mill
Benchtop cutting mill for small quantities of soft, medium hard, tough, elastic and fibrous material such as plastics, textiles and plant matter. The grinding chamber design allows a high proportion of the sample to be recovered, which matters when only a small amount of material is available.
- SK 300: Cross Beater Mill
Cross beater mill for coarse and fine size reduction of medium hard and brittle material such as coal, coke, minerals and slag. It runs from laboratory to pilot plant scale and the adjustable rotor speed with an exchangeable bottom sieve sets the final fineness down to below 100 µm.
- SM 100: Cutting Mill
Basic model cutting mill for routine size reduction of soft, medium hard, elastic and fibrous material. A fixed 1,500 rpm rotor cuts the sample against stationary knives until it passes the bottom sieve, which sets the final fineness between 0.25 mm and 20 mm.
