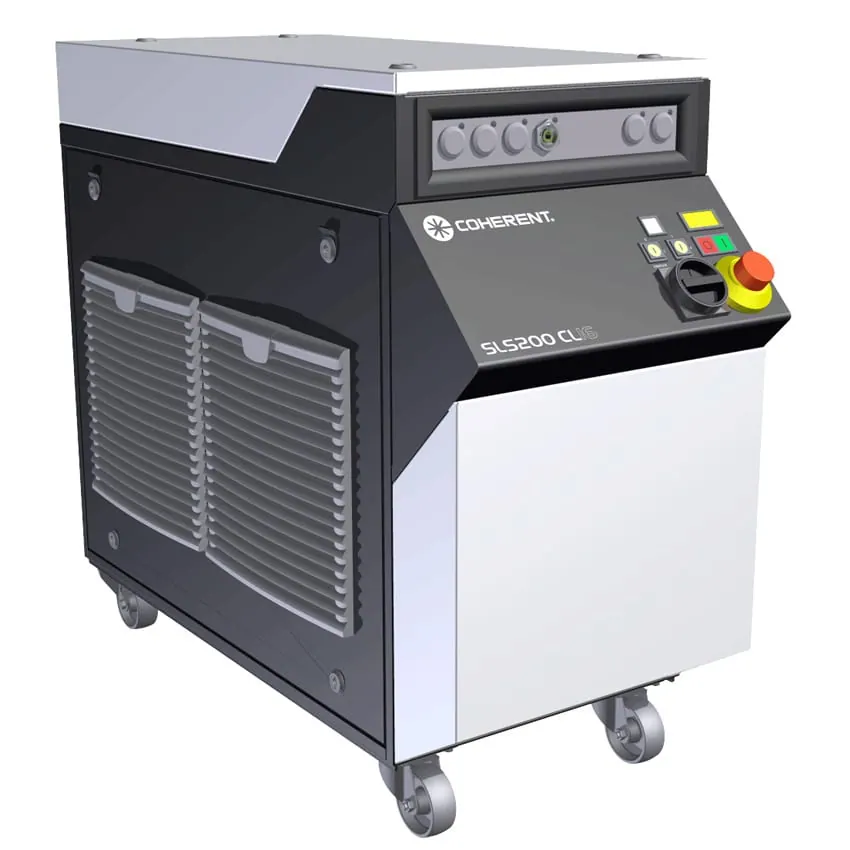

SLS200 CL Pulsed Laser Welder
Brand: Coherent | Category: Scientific & Laboratory Equipment
The SLS200 CL integrates a lamp pumped pulsed Nd:YAG laser with a beam delivery fibre, optics, control electronics and software. Paired with an LLBK processing head it performs spot and seam welding of thin, delicate or heat sensitive metals over a wide power range.
Technical Specifications
| Parameter | Value |
|---|---|
| SLS200 CL8 | 10 W average power, 0.1 to 2.0 kW peak, 8.0 J maximum pulse energy, 1 fiber output port |
| SLS200 CL8 LOP | 10 W average power, 0.02 to 1.0 kW peak, 8.0 J maximum pulse energy |
| SLS200 CL16 | 50 W average power, 0.2 to 6.0 kW peak, 40 J maximum pulse energy, 6 fiber output ports |
| SLS200 CL16 LOP | 25 W average power, 0.05 to 1.0 kW peak, 10 J maximum pulse energy |
| SLS200 CL60 | 220 W average power, 0.2 to 7.0 kW peak, 70 J maximum pulse energy, 6 fiber output ports |
| SLS200 CL60 HP | 300 W average power, 0.2 to 10.0 kW peak, 110 J maximum pulse energy |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
