GeoLasGC
Brand: Coherent | Category: Scientific & Laboratory Equipment

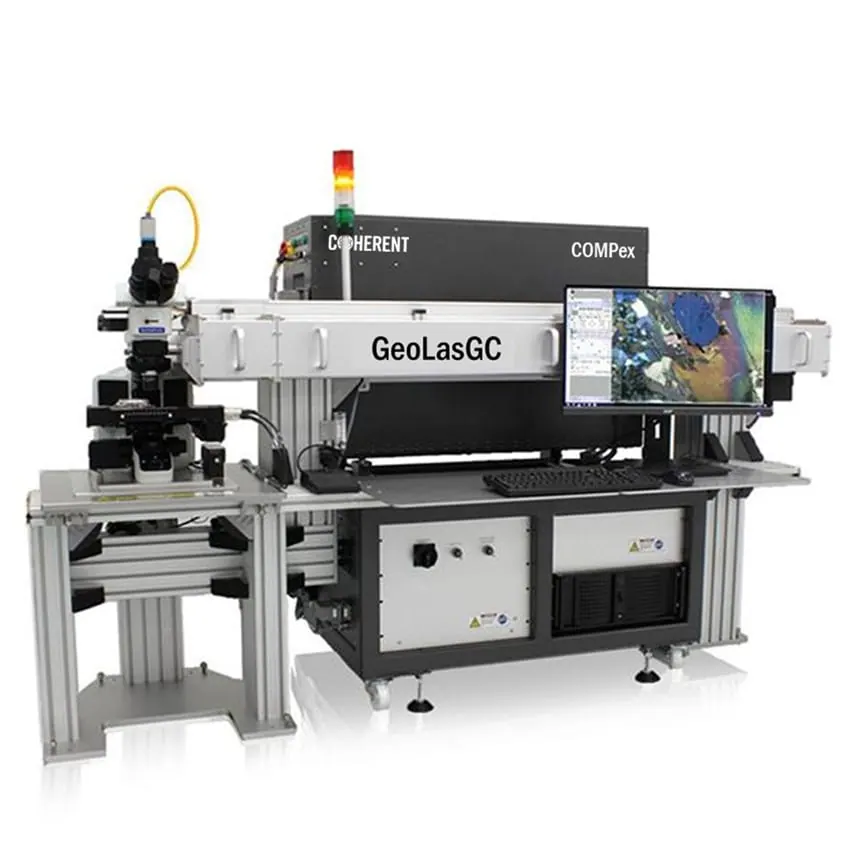

GeoLasGC is a laser ablation system for LA-ICP-MS elemental and isotopic analysis. It combines a 193 nm COMPex excimer laser, a polarised microscope, HD camera observation and a dual volume sample cell, and is used for isotope ratios, fluid inclusion work and zircon age dating.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength | 193 nm |
| Spot diameter on sample | 2 to 160 um |
| Optical resolution | 1 um |
| Maximum repetition rate | 20 Hz, 100 Hz optional |
| X, Y drive minimum step size | 0.1 um |
| Z focus minimum step size | 0.1 um |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
