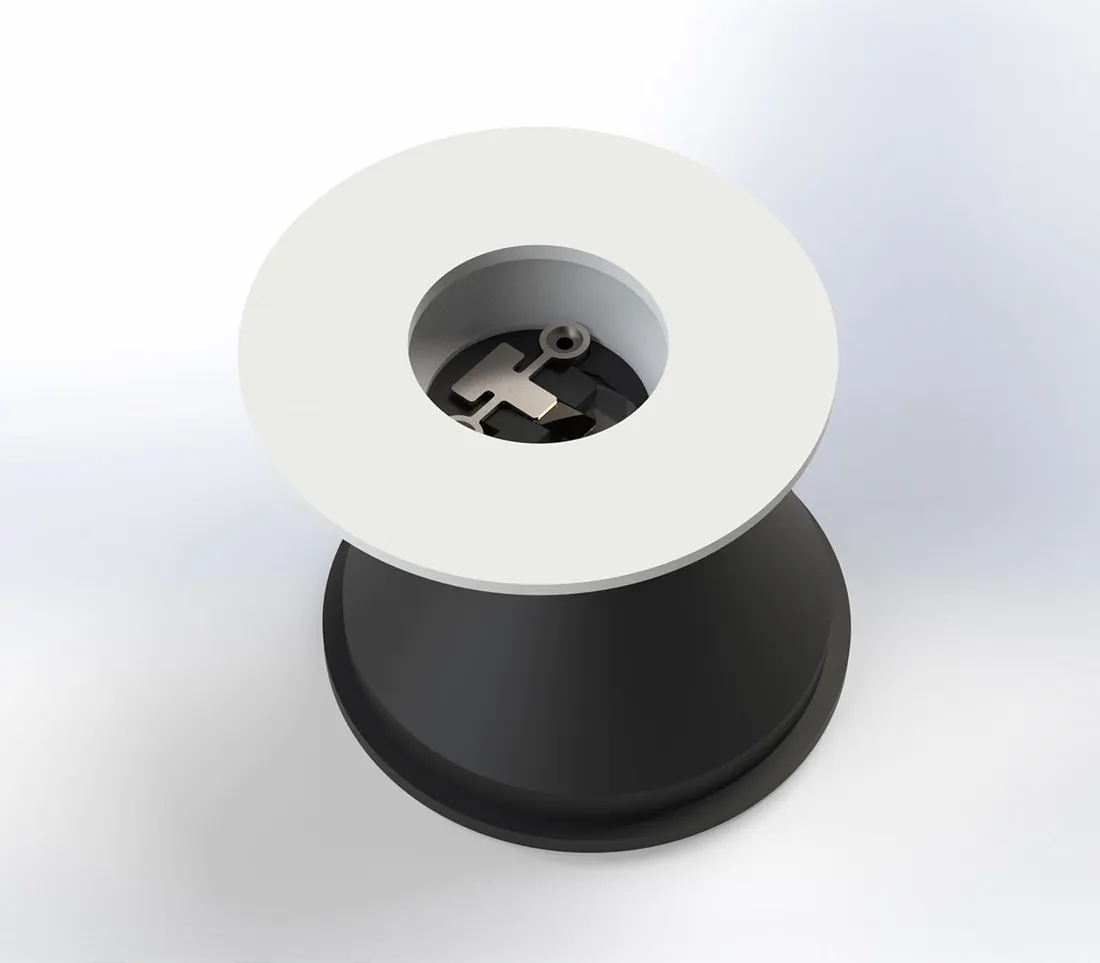

Small Volume Cantilever Holder and Perfusion Chamber
Brand: Nanosurf | Category: Nanotechnology
A cantilever holder with an integrated perfusion chamber that allows AFM measurement in a liquid volume of 250 microlitres. Fluid is exchanged through the ceramic platform during the experiment, and the silicone sealing membrane tolerates acids used for cleaning.
Technical Specifications
| Parameter | Value |
|---|---|
| Liquid volume | 250 ul |
| Materials | ceramic cantilever holder and platform, silicone sealing membrane |
| Dimensions | 24 mm diameter x 18 mm |
| Weight | 2.2 g |
| Compatibility | DriveAFM |
