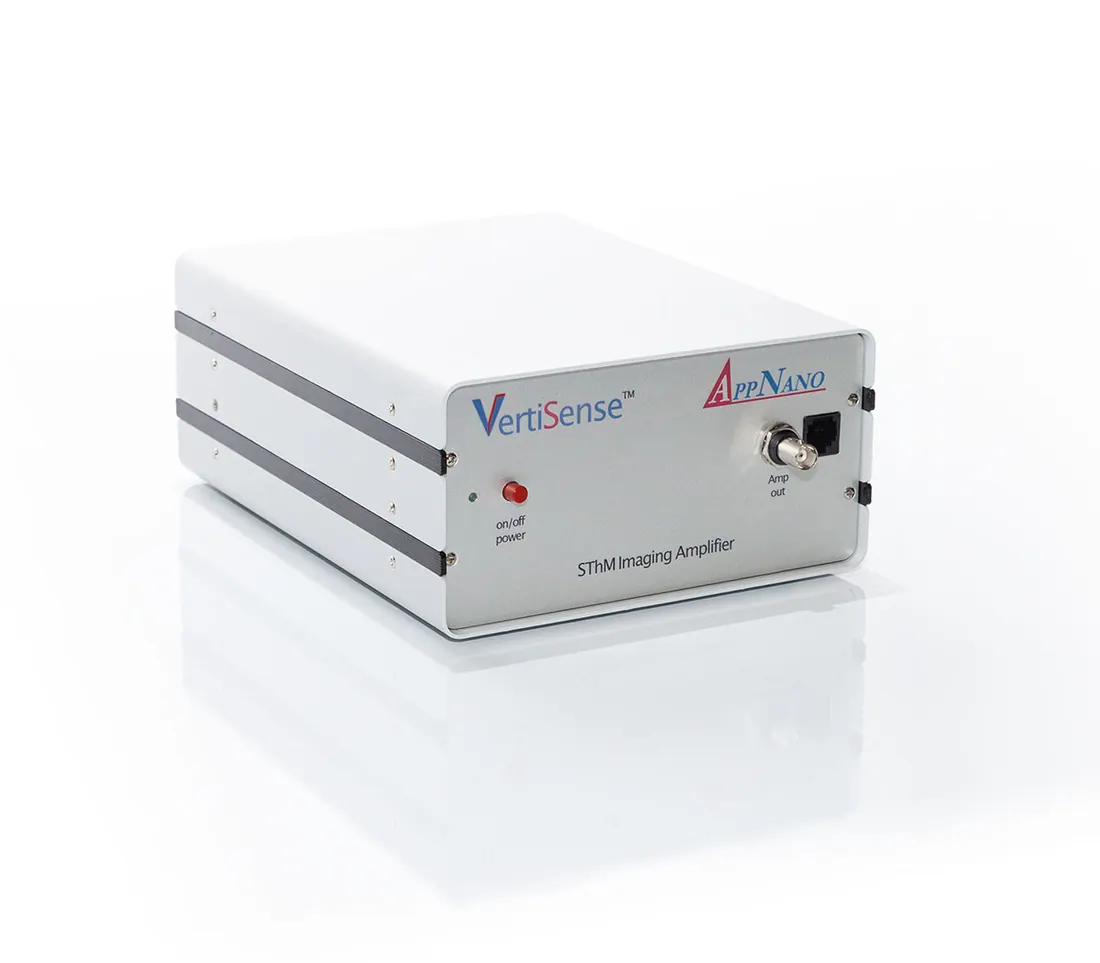

VertiSense Scanning Thermal Microscopy (SThM)
Brand: Nanosurf | Category: Nanotechnology
A readout unit for AppNano scanning thermal microscopy probes that adds thermal imaging to a Nanosurf AFM. It is used to map local temperature distribution and variations in thermal conductivity across a sample surface.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 175 x 95 x 225 mm |
| Weight | 1.5 kg |
| Probes | AppNano SThM probes |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
