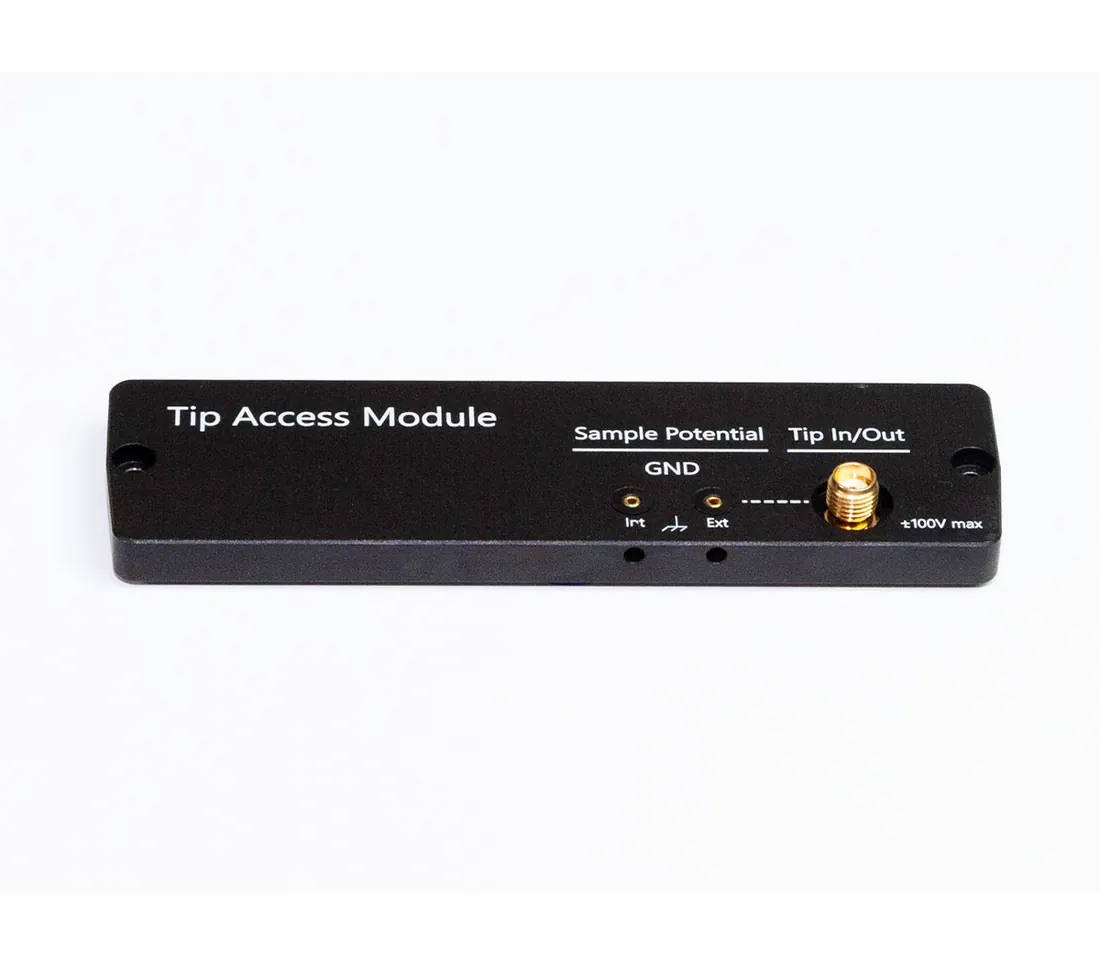

Tip Access Module
Brand: Nanosurf | Category: Nanotechnology
A module that brings a direct electrical connection out to the cantilever tip on the DriveAFM through an SMA connector. Either external ground or scan head ground can be selected, which matters when an external source or measuring instrument is wired in.
Technical Specifications
| Parameter | Value |
|---|---|
| Connector | SMA |
| Ground options | external or scan head |
| Dimensions | 110 x 31 x 6 mm |
| Weight | 0.040 kg |
| Compatibility | DriveAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
