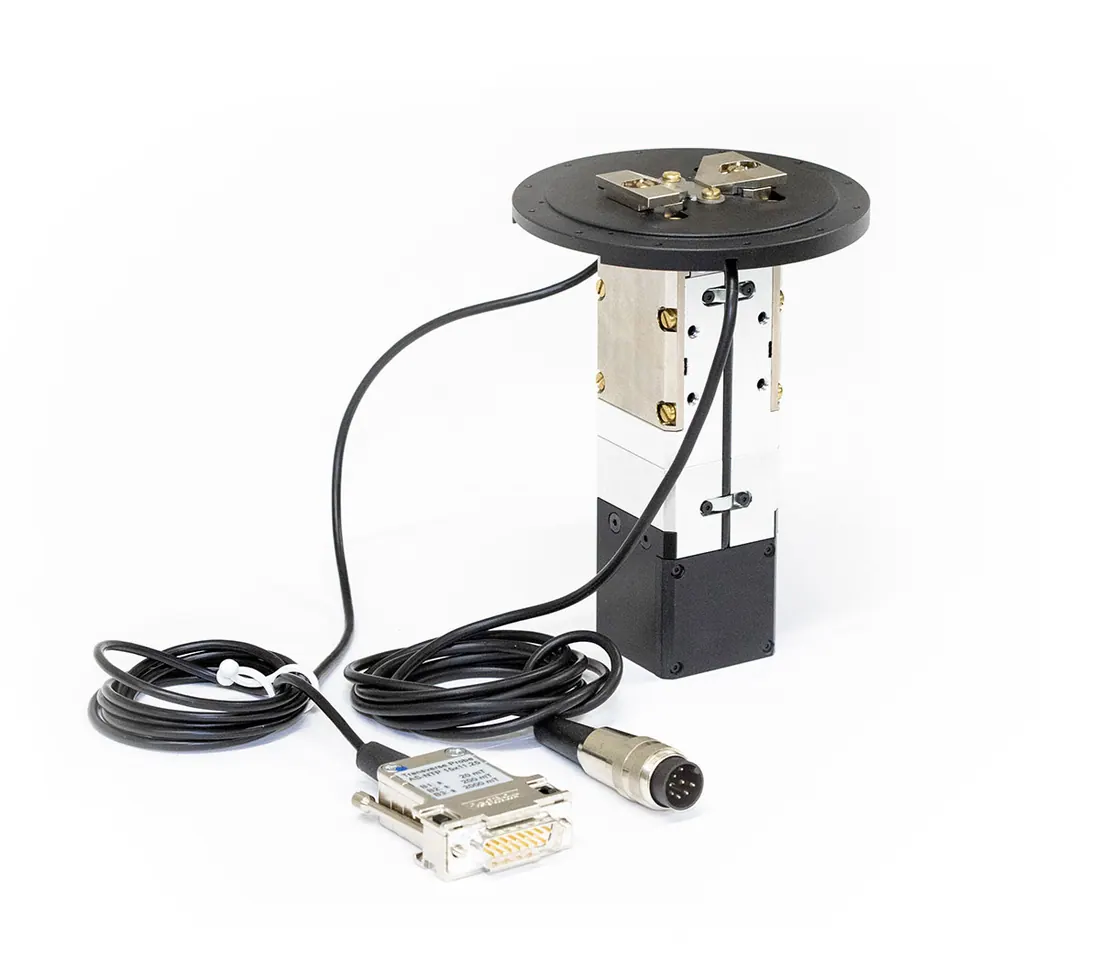

Variable Magnetic Field Sample Holder (VMFSH) and Controller
Brand: Nanosurf | Category: Nanotechnology
A sample holder and controller that apply a variable magnetic field during measurement, used mainly for magnetic force microscopy. The in-plane field reaches about 780 mT at a 2 mm gap, and the field can be stepped in increments of 0.001 mT.
Technical Specifications
| Parameter | Value |
|---|---|
| Magnetic field range in plane | about 780 mT at 2 mm gap |
| Magnetic field range out of plane | about 110 mT |
| Field step | 0.001 mT |
| Sample holder | 100 mm diameter x 140 mm, weight 1.0 kg |
| Controller | 220 x 45 x 270 mm, weight 1.5 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM in-plane only |
