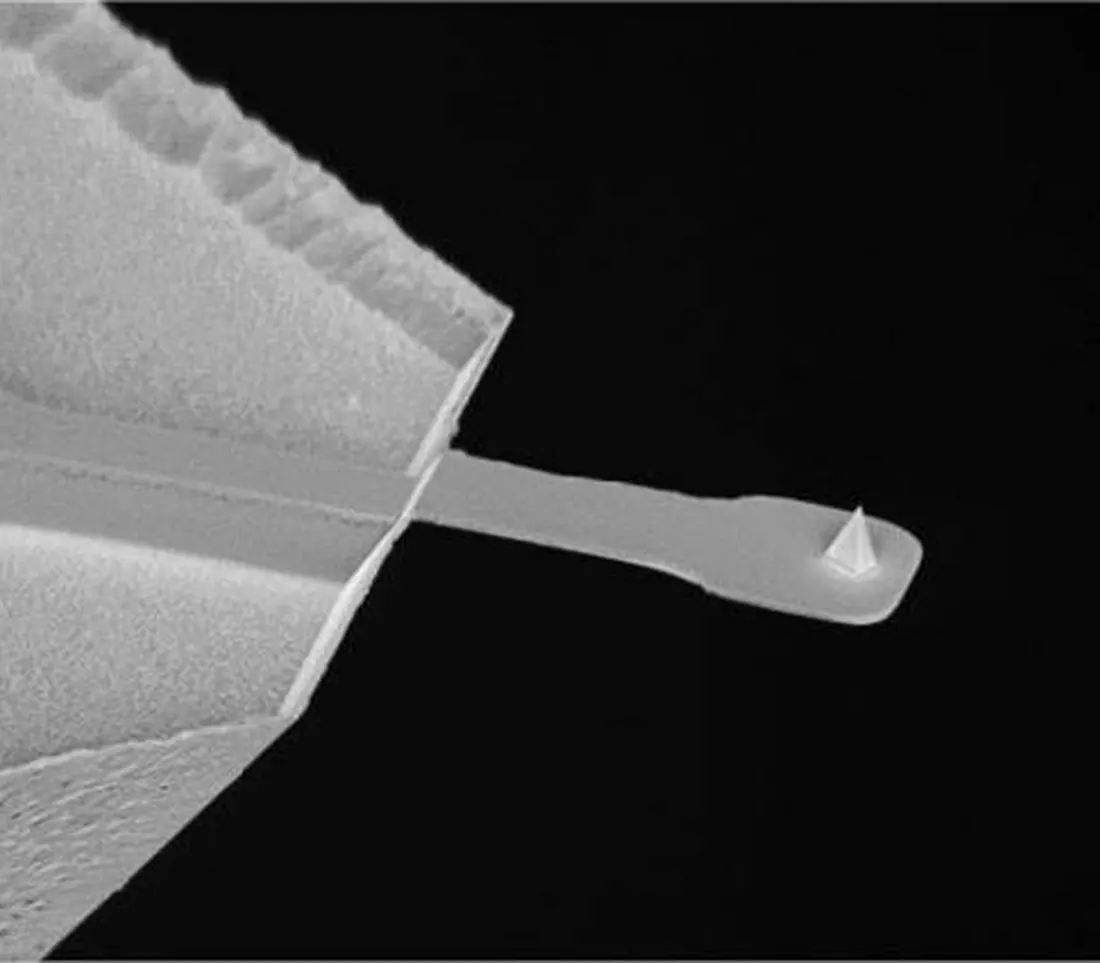

WaveMode Cantilever WM0.8PTD
Brand: Nanosurf | Category: Nanotechnology
A silicon nitride probe for photothermal off-resonance tapping in WaveMode, coated with metal layers tuned for photothermal excitation and laser readout. The paddle shape limits reflective interference from the sample. Sold in boxes of ten.
Technical Specifications
| Parameter | Value |
|---|---|
| Shape | rectangular with paddle, silicon nitride |
| Length | 40 to 60 um, typically 50 um |
| Thickness | 0.54 to 0.66 um, typically 0.60 um |
| Resonance frequency in air | 150 to 400 kHz, typically 250 kHz |
| Spring constant | 0.5 to 1.8 N/m, typically 0.8 N/m |
| Tip | pyramidal silicon, radius below 10 nm |
