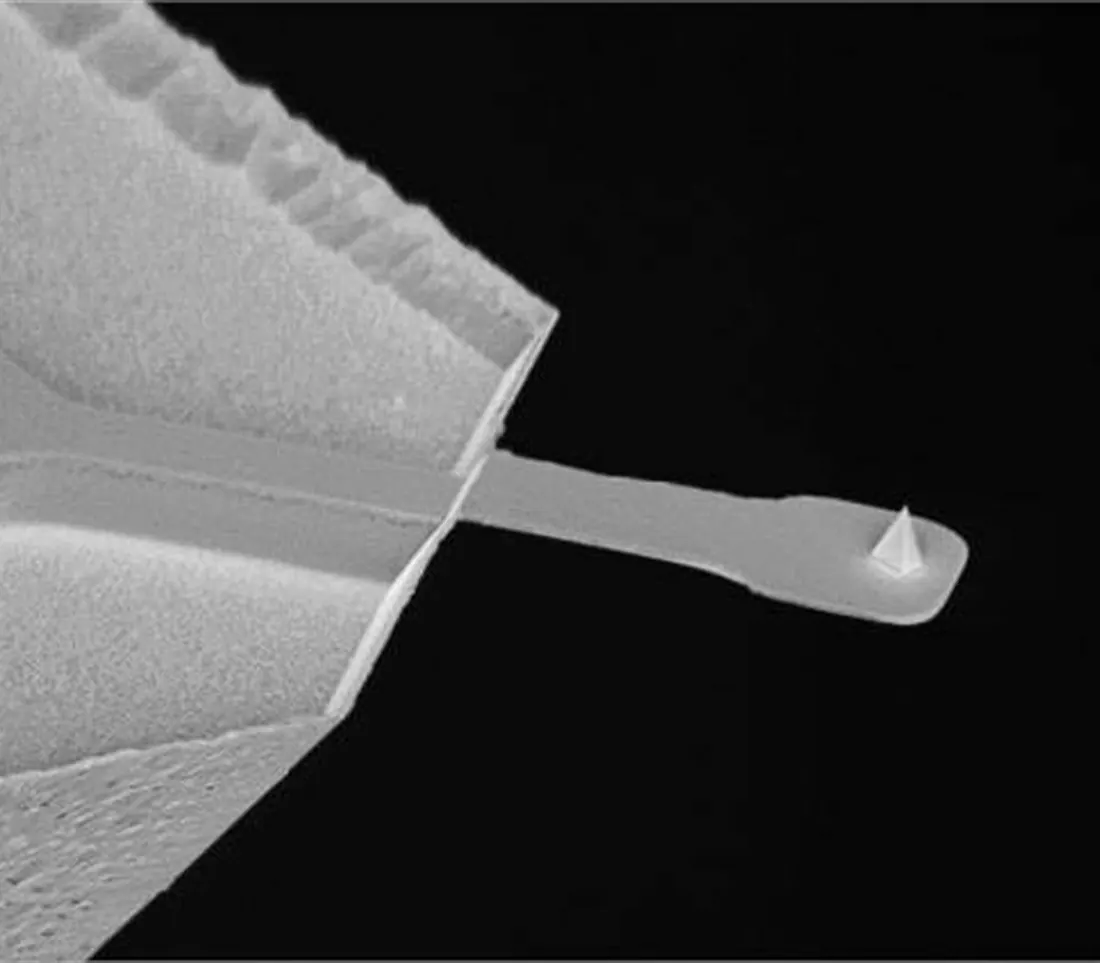

WaveMode Cantilever WM0.1Au-SS
Brand: Nanosurf | Category: Nanotechnology
A silicon nitride probe for photothermal off-resonance tapping in WaveMode, with a gold coating on the reflex side tuned for photothermal excitation. The paddle shape limits reflective interference from the sample and raises the sum signal. It works in air and in liquid.
Technical Specifications
| Parameter | Value |
|---|---|
| Shape | rectangular with paddle, silicon nitride |
| Coating | reflective gold on the top side |
| Length | 30 to 50 um, typically 40 um |
| Resonance frequency in air | 80 to 200 kHz, typically 120 kHz |
| Spring constant | 0.05 to 0.3 N/m, typically 0.1 N/m |
| Tip | pyramidal silicon, radius below 10 nm, typically 2 nm |
