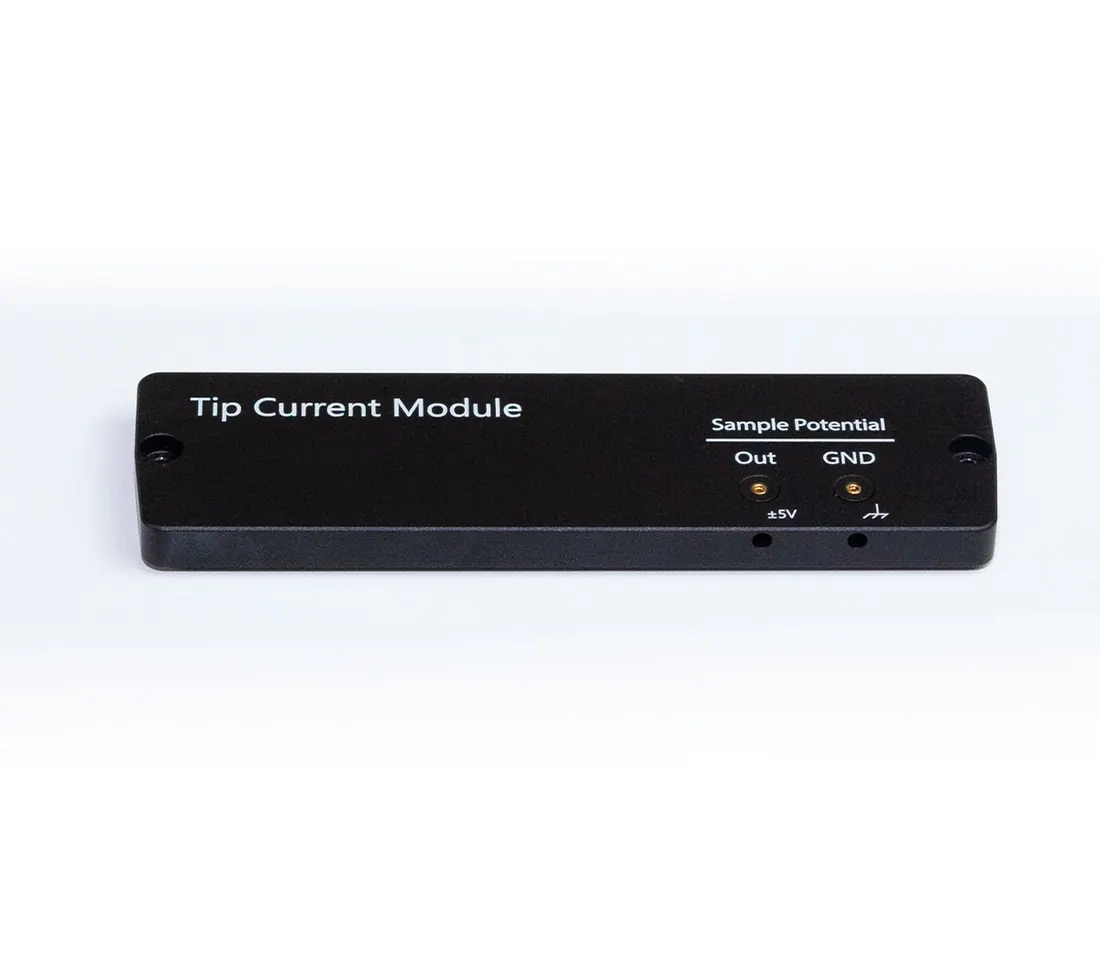

Tip Current Module
Brand: Nanosurf | Category: Nanotechnology
A linear current amplifier for the DriveAFM with three switchable gain stages, covering plus or minus 0.5 mA down to plus or minus 50 nA. It suits conductive AFM where the current range varies between samples, and offers external or scan head grounding.
Technical Specifications
| Parameter | Value |
|---|---|
| Current range | plus or minus 0.5 mA, plus or minus 5 uA, plus or minus 50 nA |
| Current-to-voltage conversion | 1x10^4, 1x10^6 and 1x10^8 V/A |
| Current noise | 1.3 pA, 0.13 pA and 0.01 pA per root Hz |
| Dimensions | 110 x 31 x 6 mm |
| Weight | 0.040 kg |
| Compatibility | DriveAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
