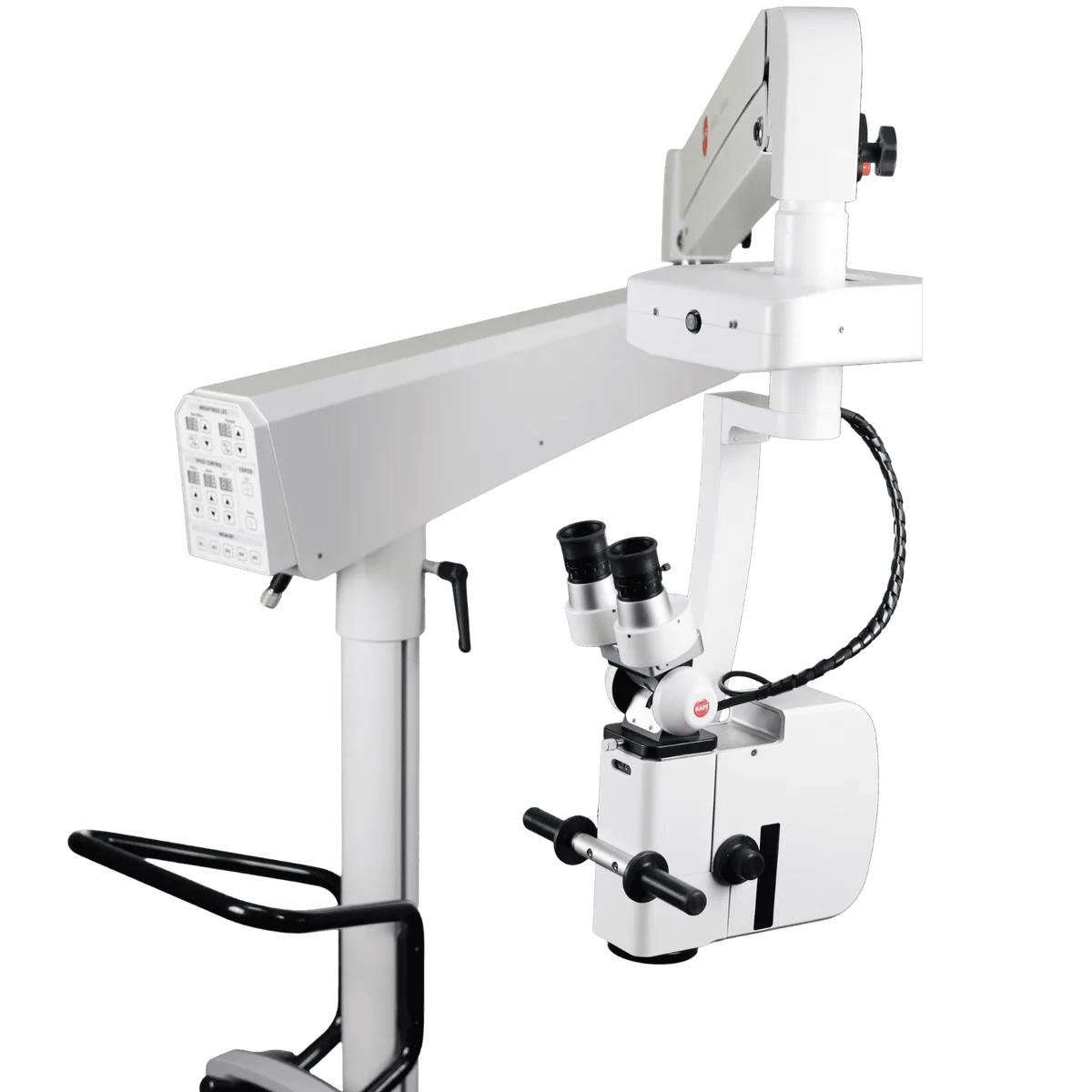

SOM4Opht
Brand: Karl Kaps | Category: Medical Equipment
The SOM4OPHT opens a new generation in the Kaps cataract range, running a dual LED system in which coaxial field illumination and a dedicated red reflex source are switched and dimmed independently from the touchpad. Three swing-in filters extend its use: green (red-free) for vascular contrast, orange (blue-blocking) to reduce blue light reaching the patient's eye, and blue for fluorescence diagnostics. Five memory slots store complete profiles covering zoom position, focus setting, XY coordinates and the intensity of both LED sources, which makes it well suited to clinics where several surgeons share one microscope. A true stereo observer lets the whole team follow the procedure in three dimensions, an advantage over monitor viewing alone for training clinics.
Published component and configuration details
| Parameter | Value |
|---|---|
| Illumination | Separate LED field and red-reflex illumination |
| Controls | Touchpad with memory function |
| Observation | Stereo co-observer arrangement |
Selected information from this Karl Kaps product page. Confirm compatibility, optical configuration and optional accessories in the quotation; related-product listings are not specifications for this item. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Karl Kaps equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
