Symmetry S3
Brand: Oxford Instruments | Category: Nanotechnology

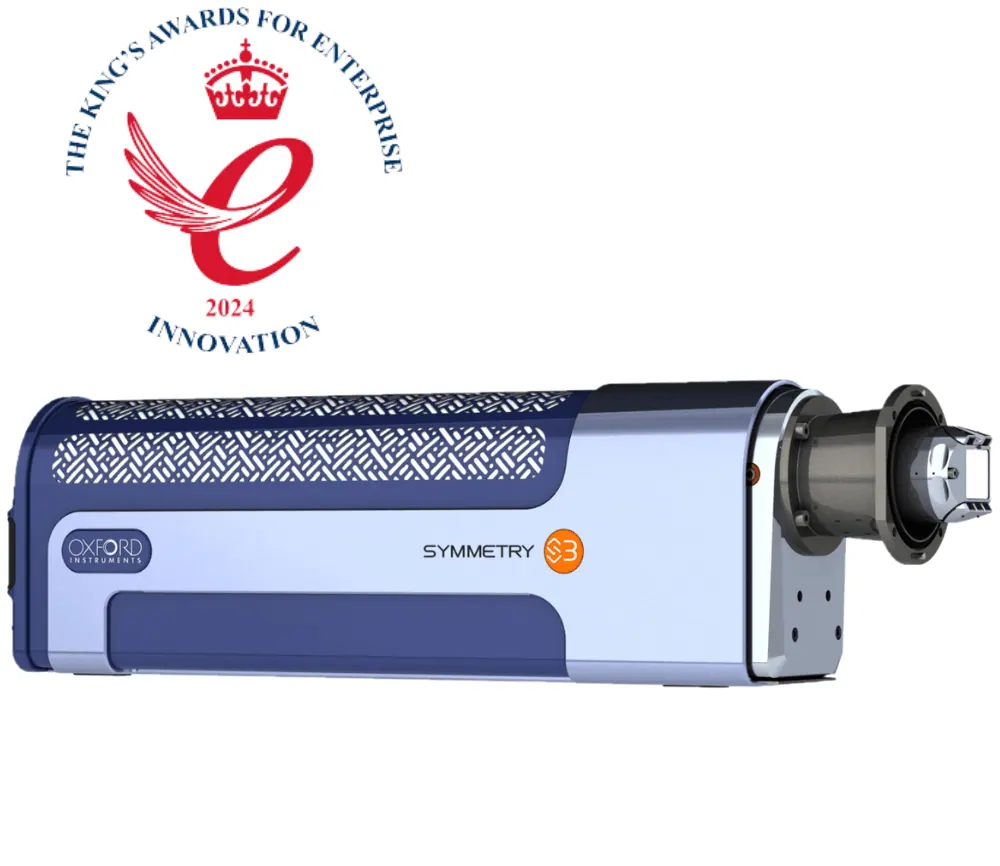

Symmetry S3 is an all in one electron backscatter diffraction detector built on a CMOS sensor with lens free fibre optic coupling. It combines high indexing speed with the sensitivity needed for low energy and low current work, and the detector tilt is controlled from software.
Plan your specification
Specify both fast mapping and detailed patterns for Symmetry S3
Symmetry S3 combines a fast 156 × 128-pixel mode with full 1244 × 1024-pixel patterns. Define which measurements need each mode before comparing the complete system.
- Mapping conditions
- Oxford lists more than 5700 patterns/s at 156 × 128 pixels. Request a demonstration on representative specimens with beam conditions, indexing results and pattern settings recorded; full-resolution patterns are a separate mode.
- Detector and SEM geometry
- The detector has software-controlled tilt. Provide the SEM model, chamber ports, sample size and existing EDS arrangement so the proposed mounting and usable geometry can be confirmed.
- Acquisition and analysis scope
- Identify the required grain, phase or specialised strain outputs. Ask which software, data-storage hardware, licences, training and acceptance measurements are included.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Indexing speed | in excess of 5700 pps at 156 x 128 pixel pattern resolution |
| Full pattern resolution | 1244 x 1024 pixels for high angular resolution EBSD |
| Specification | Unique fibre optic coupling with sub-pixel distortion |
| Specification | Software controlled detector tilting |
| Specification | Proximity sensor to avoid stage collisions |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
