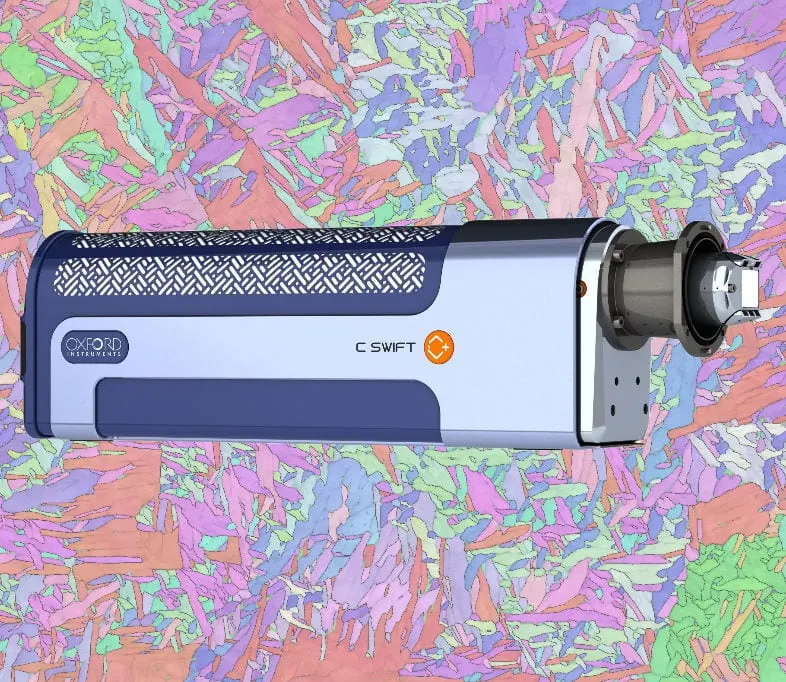

C-Swift+
Brand: Oxford Instruments | Category: Nanotechnology
C-Swift+ is a high speed entry level electron backscatter diffraction detector for routine materials analysis and high throughput characterisation. It uses a customised CMOS sensor with fibre optics, and can trade speed for pattern quality on complex multi phase samples.
Plan your specification
Compare C-Swift+ throughput at a usable pattern quality
C-Swift+ offers fast mapping and a higher-resolution pattern mode. Select the operating mode around the routine specimen types and the phase detail the laboratory needs.
- Fast versus detailed acquisition
- Oxford lists more than 2000 patterns/s at 156 × 128 pixels and 622 × 512-pixel patterns at up to 250 patterns/s. Compare the actual acquisition quality and time at the appropriate mode for your specimens.
- Multiphase measurements
- State which phases must be distinguished and whether simultaneous EDS is required. Ask for relevant pattern examples and confirm the compatible software and phase information used in the demonstration.
- Complete mapping workflow
- Provide the SEM, specimen and stage details for an integration review. Confirm detector clearance, map data handling, analysis options and acceptance evidence for the expected workload.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Indexing speed guaranteed | greater than 2000 pps using only 8 nA beam current |
| Pattern resolution at maximum speed | 156 x 128 pixels |
| Specification | 622 x 512 pixel patterns at speeds up to 250 pps |
| Angular precision | below 0.05° |
| Specification | Optional integrated forescatter detectors |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- SEM model, installed detectors and stage arrangement
- Routine specimen types and expected mapping workload
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
