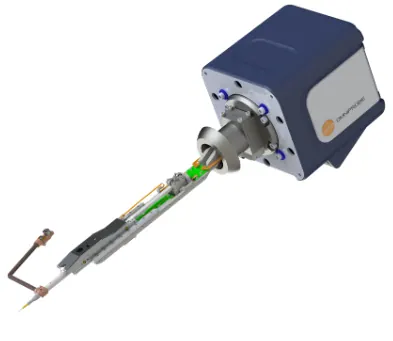

OmniProbe 350 Cryo lift-out
Brand: Oxford Instruments | Category: Nanotechnology
The cryo lift out option extends OmniProbe lift out to cryogenic samples, including those made by high pressure freezing. A custom probe shaft with a thermally isolated tip is cooled passively from the cryo system cold finger, opening up cryo-TEM and cryo atom probe work.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Works on samples cooled as low as -180 °C by third party cryo systems |
| Specification | Custom probe shaft assembly with thermally isolated probe tip |
| Specification | Passively cooled by direct connection to the cryo system cold finger |
| Specification | Available for the OmniProbe 350 system and field retrofittable |
| Specification | Includes a non-exclusive licence to the Oxford Instruments ice attachment method |
