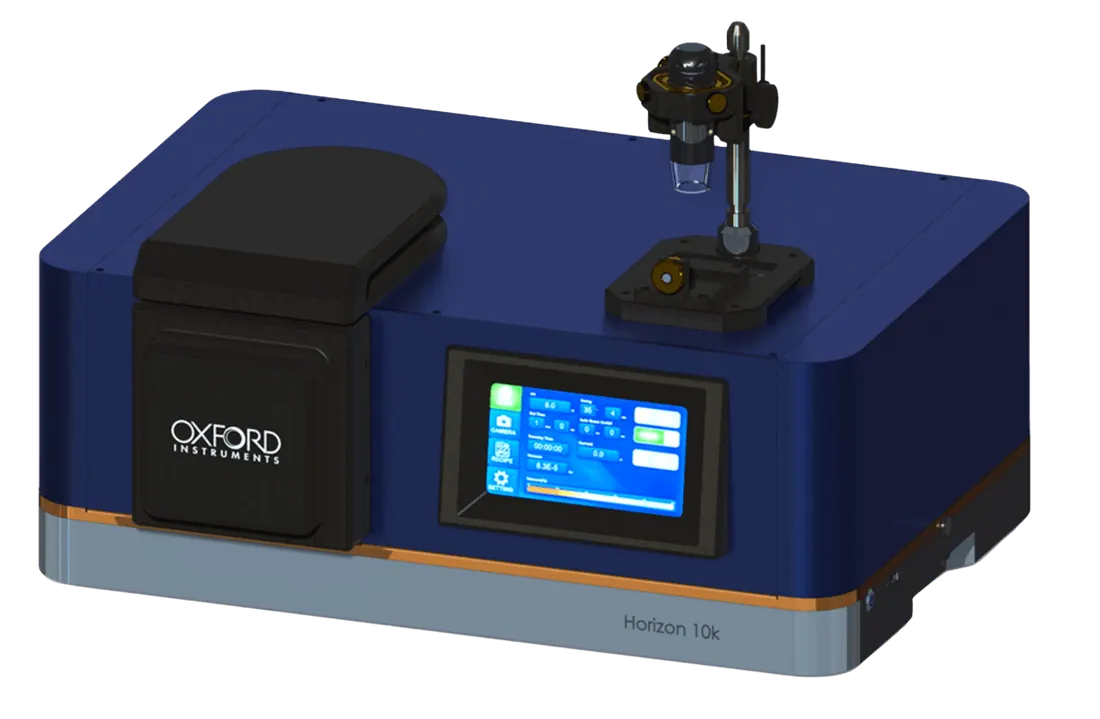

Horizon 10k Ion Polisher
Brand: Oxford Instruments | Category: Nanotechnology
The Horizon 10k Ion Polisher uses an argon plasma to etch and prepare flat and cross sectional samples for microscopy. A cooling stage limits thermal damage, and recipe based operation with simple sample mounting keeps preparation repeatable on soft and difficult materials.
Technical Specifications
| Parameter | Value |
|---|---|
| Milling speed | 1,000 µm/h on silicon at 8 kV |
| Specification | Cooling stage to minimise thermal damage |
| Specification | Flat milling function for planar etching |
| Specification | Fast pump and vent time with easy sample loading |
| Specification | Uses argon plasma for both flat and cross sectional preparation |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
