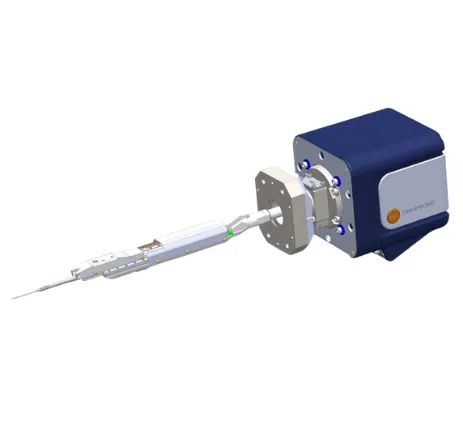

OmniProbe
Brand: Oxford Instruments | Category: Nanotechnology
OmniProbe nanomanipulators are used for lift out work in FIB and SEM systems, mainly TEM lamella preparation. The ninth generation units run on piezoelectric motors under closed loop control, and the port mounted design keeps clear of other detectors and accessories.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Ninth generation nanomanipulators with piezoelectric motors |
| Specification | Closed loop control for repeatable positioning |
| Specification | Probe rotation to deliver a wide range of sample geometries |
| Specification | Port mounted design minimises interference with other detectors |
| Specification | Cryogenic tip option for producing lamella for cryo-TEM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
