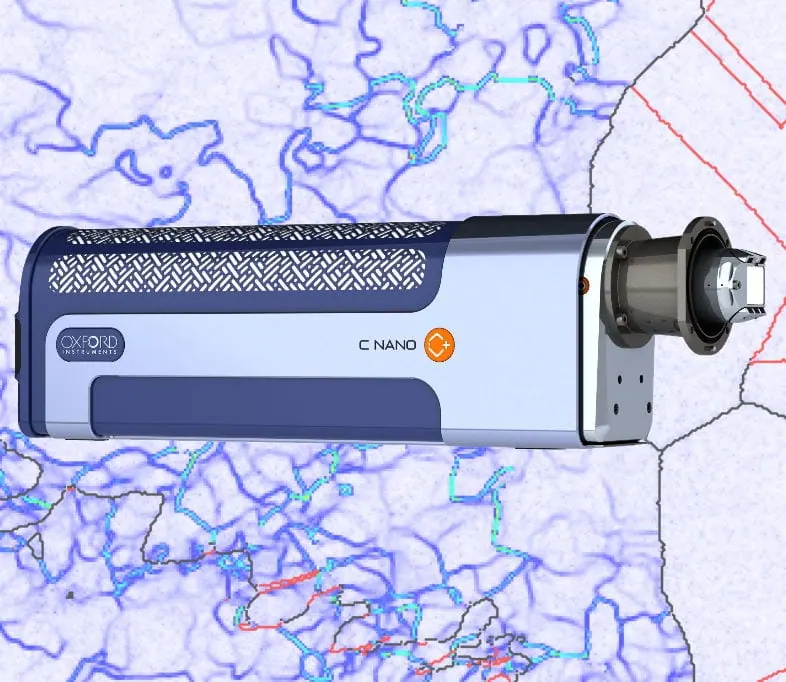

C-Nano+
Brand: Oxford Instruments | Category: Nanotechnology
C-Nano+ is an entry level electron backscatter diffraction detector using a customised CMOS sensor. Its high pixel resolution suits detailed strain analysis, and the lens free fibre optic design gives the sensitivity needed for beam sensitive and nanocrystalline materials.
Plan your specification
Match C-Nano+ pattern detail to the research question
C-Nano+ offers full 1244 × 1024-pixel patterns and a faster 311 × 256-pixel mode. Evaluate the detail your analysis needs alongside the available SEM beam conditions.
- Useful pattern resolution
- Specify whether the workload is routine orientation mapping or needs detailed pattern analysis. Ask to compare full-resolution data with the 311 × 256-pixel mode, for which Oxford lists 600 patterns/s.
- Sample and beam compatibility
- Share the material, smallest relevant features and any beam-sensitivity concerns. Evaluate representative prepared samples rather than inferring achievable resolution or sensitivity from detector pixels alone.
- Microscope interface and data workflow
- Confirm the mounting, detector clearance and existing EDS integration. Include acquisition and analysis licences, raw-pattern storage, data export and method-specific training in the quotation.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Indexing speed guaranteed | 600 pps using only 3 nA beam current |
| Pattern resolution at maximum speed | 311 x 256 pixels |
| Full resolution patterns | 1244 x 1024 pixels for high resolution EBSD |
| Maximum sensitivity | 900 pps per nA in full resolution mode |
| Specification | Guaranteed sub-pixel distortion giving angular precision better than 0.05° |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Existing SEM model and EDS configuration
- Materials, specimen dimensions and preparation route
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
