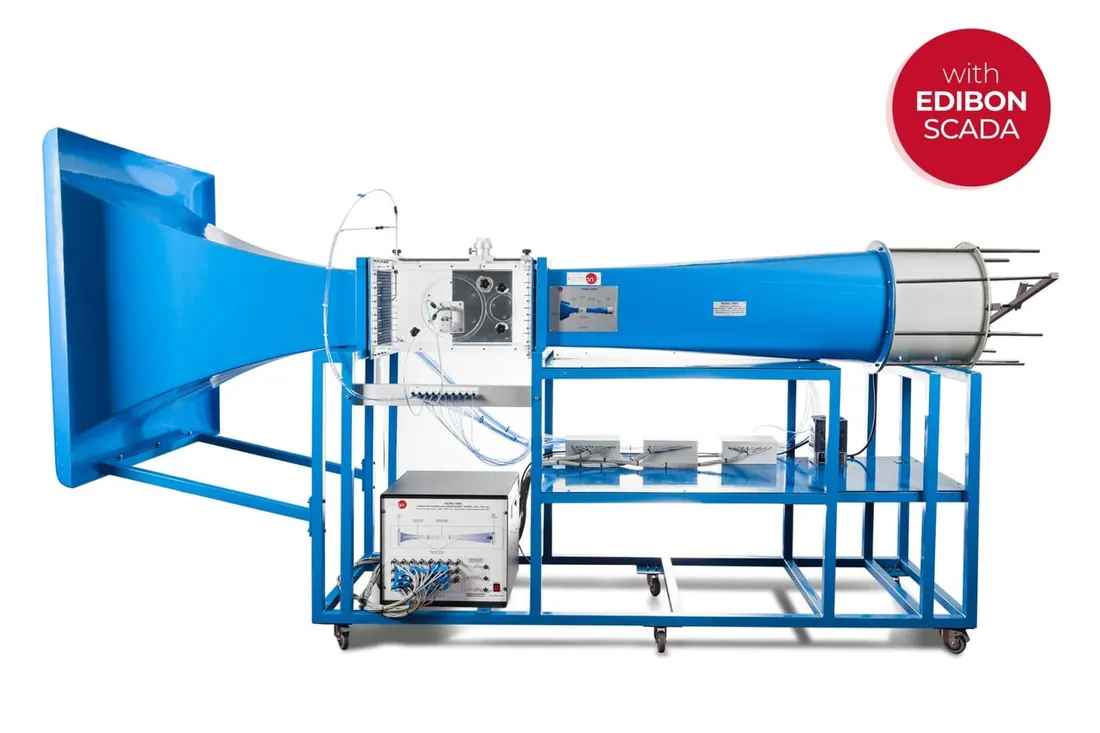

TA300/300C: Computer Controlled Aerodynamic Tunnel, 300X300 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A subsonic open circuit wind tunnel with a 300 by 300 mm working area and computer controlled fan. A 9.5 to 1 contraction and a diffuser outlet keep the flow well developed and free of turbulence over aircraft and body models.
Technical Specifications
| Parameter | Value |
|---|---|
| Transparent working area | 300 x 300 mm, length 600 mm |
| Inlet section with lips, a haven section and a 9.5 | 1 contraction ratio |
| Specification | Variable speed axial flow fan, computer controlled, power 1.5 kW |
| Air velocity in the working area | below 34 m/s |
| Specification | Sixty pressure tappings along the tunnel and in the models |
| Specification | Thirty differential pressure sensors, range 0 to 1 psi |
