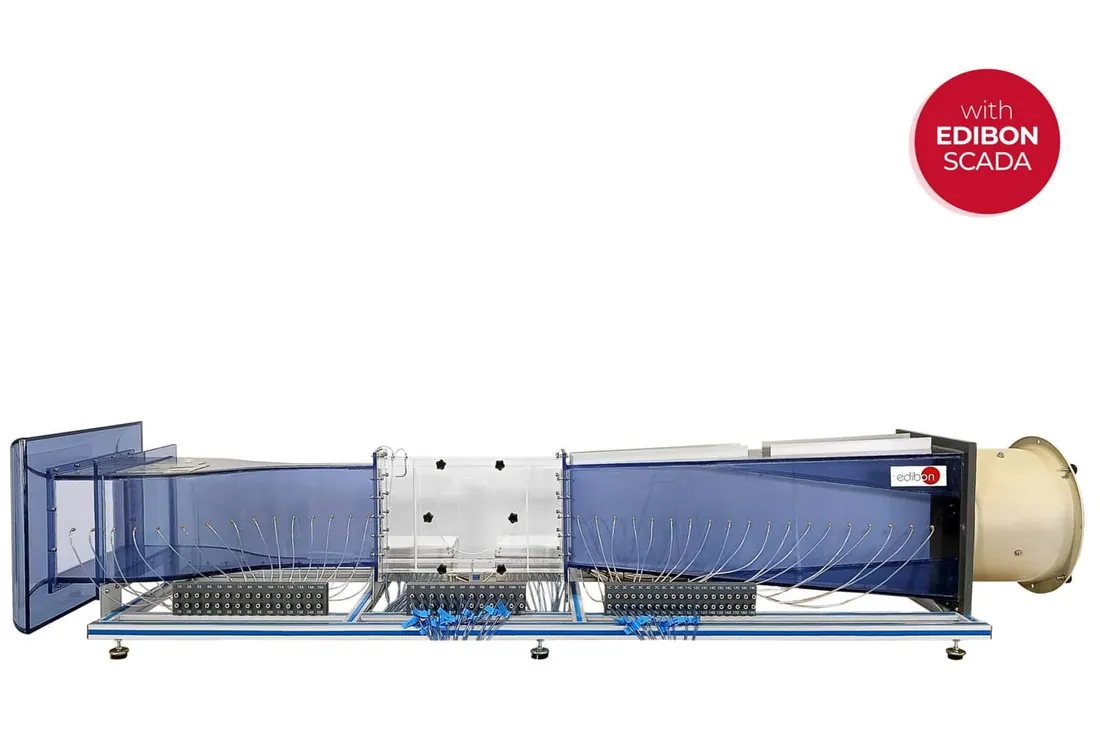

TA50/250C: Computer Controlled Aerodynamic Tunnel, 50X250 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench top open circuit wind tunnel for subsonic, incompressible flow, with the fan speed set from the computer. Lips, a haven section and an 8 to 1 contraction develop the flow before it reaches a transparent working area fitted with a Pitot static tube.
Technical Specifications
| Parameter | Value |
|---|---|
| Transparent working area | 50 x 250 mm |
| Inlet section with lips, a haven section and an 8 | 1 contraction ratio |
| Specification | Variable speed axial flow fan, computer controlled, velocity range 0 to 2800 rpm |
| Air velocity in the working area | 0 to 27 m/s |
| Specification | Sixty pressure tappings along the tunnel and in the models |
| Specification | Thirty differential pressure sensors, range 0 to 1 psi |
