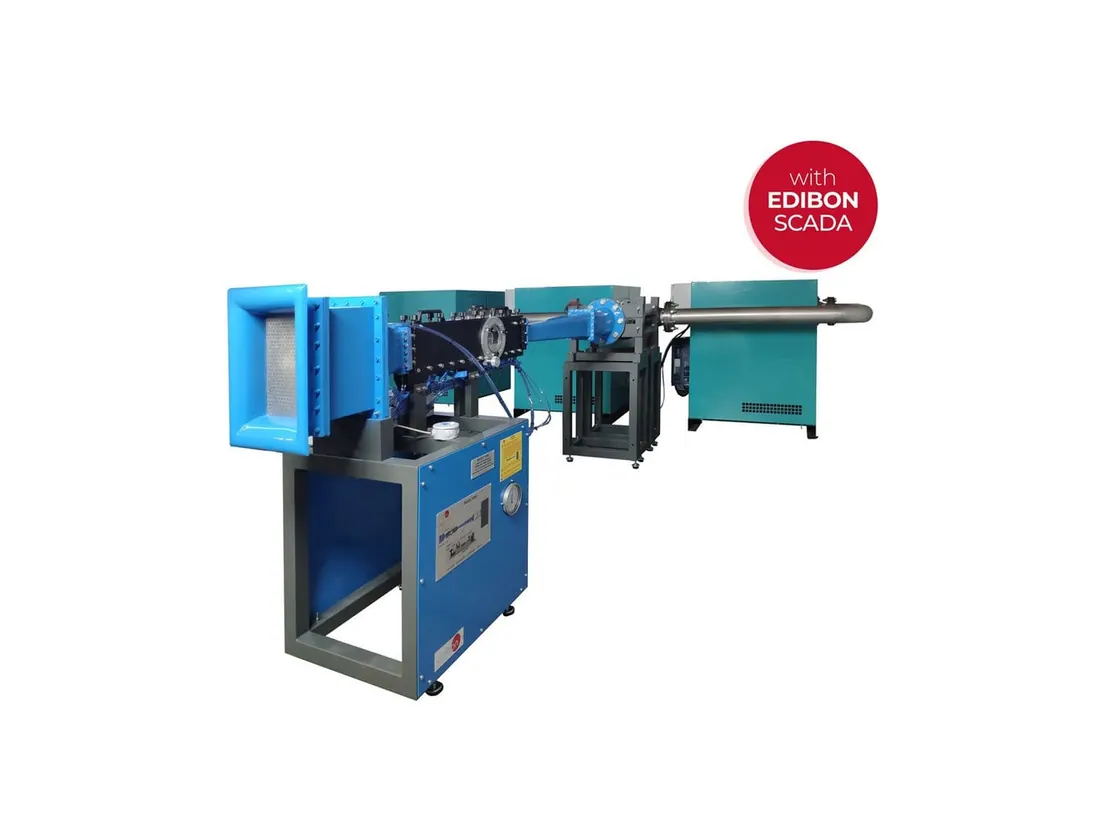

TAS25/100C-3B: Computer Controlled Supersonic Wind Tunnel (Three Blowers)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The three blower version of the EDIBON supersonic wind tunnel. Three computer controlled vacuum pumps or blowers on the discharge side draw air through the working section, where interchangeable contours give subsonic, transonic and supersonic flow over the models.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Working section made of anodised aluminium, dimensions 100 x 25 x 740 mm |
| Three interchangeable Laval contours | supersonic up to 2 Mach, transonic up to 1.4 Mach, subsonic |
| Specification | Two clear glass windows, high quality optical glass BK7 type, diameter 110 mm |
| Specification | Nozzle made of fibreglass with a flow straightener of 200 mm length |
| Specification | Three vacuum pumps or blowers with computer controlled power regulator |
| Aerodynamic models | 5 degree single wedge, 7 degree and 10 degree double wedges, projectile and rocket |
