TAVF180/100: Aerodynamic Tunnel for Flow Visualization
Brand: EDIBON | Category: Scientific & Laboratory Equipment

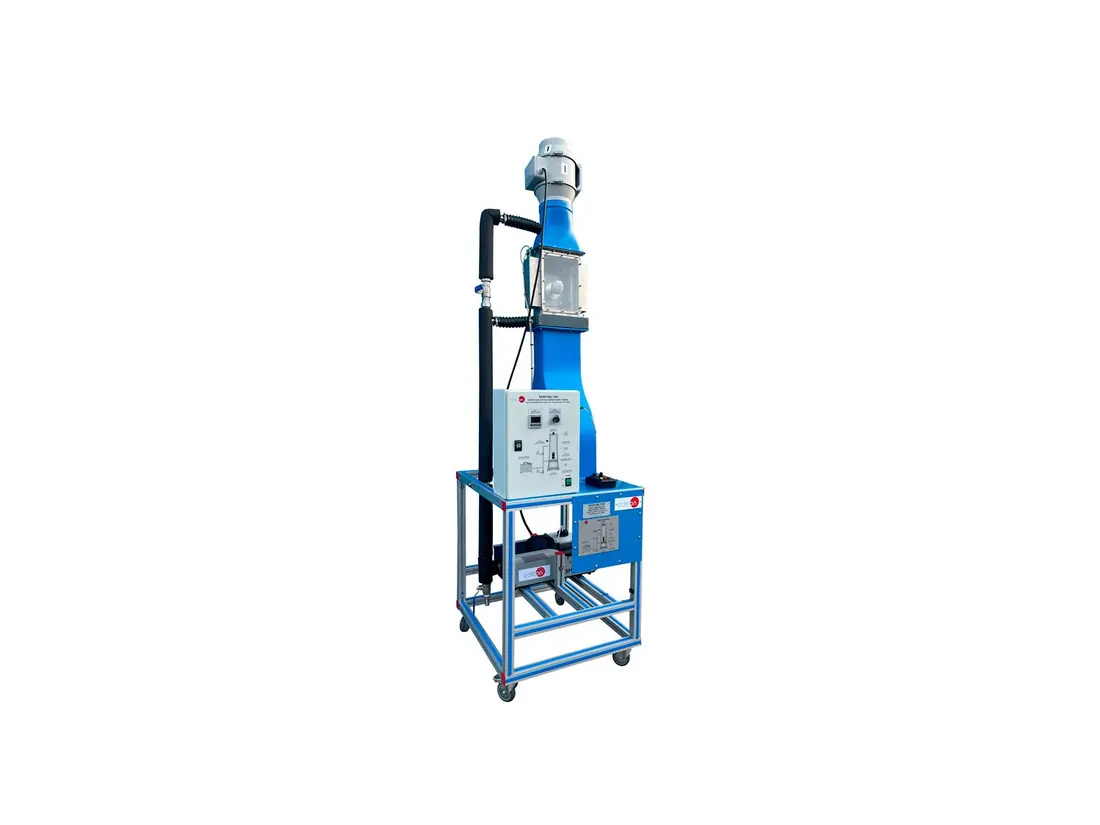

TAVF180/100 is a tunnel with upward air flow for visualising two dimensional flow. Smoke filaments pass over aerofoils, cylinders and other shapes so streamlines, separation and wake formation can be seen and photographed.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 600 x 600 x 2200 mm approx |
| Weight | 50 Kg approx |
| Variable speed fan maximum flow rate | 325 m³/h |
| Variable speed fan speed in working section | 0 to 5 m/s |
| Variable speed fan dimensions of the working area | 180 x 100 x 240 mm |
| Variable speed fan flow straightener (comb) | 23 strands with 7 mm spacing |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
