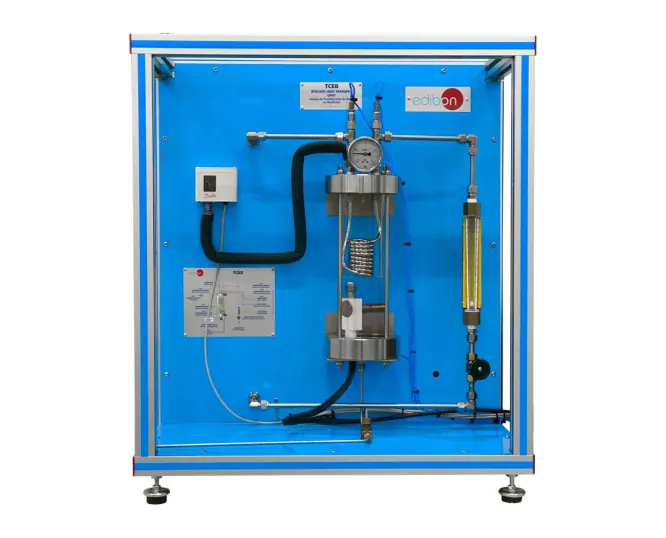

TCEB: Boiling Heat Transfer Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Vertical glass chamber with a horizontal heating element submerged in coolant, giving a clear view of convective, nucleate and film boiling. A water cooled condenser coil returns the condensate for re-evaporation and allows the heat flux to be quantified.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Heating element with cylindrical copper sleeve and contact temperature sensor on the hot surface |
| Specification | Second temperature sensor measures the coolant temperature |
| Specification | Nickel plated copper coil condenser at the top of the chamber |
| Specification | Coil inlet and outlet temperature sensors plus flowmeter for the heat balance |
| Specification | Wattmeter measures the electric power consumed by the heating element |
| Specification | Manometer, relief valve and low pressure switch for pressure control and safety |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
