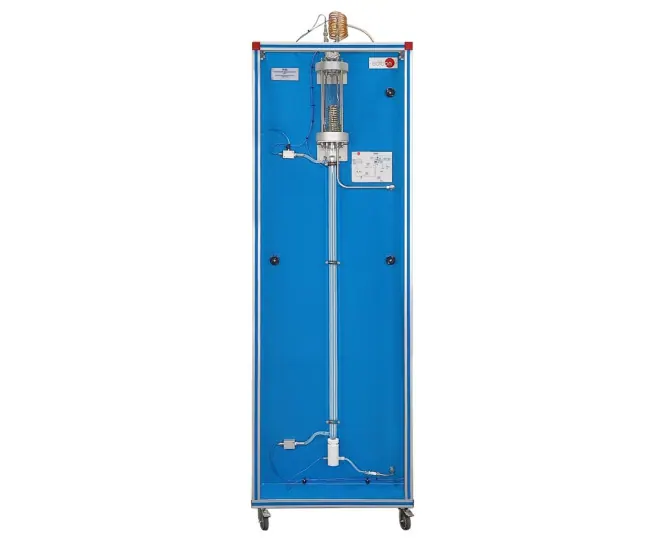

TFEB: Flow Boiling Demonstration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Two concentric glass tubes in which refrigerant rises by convection through the inner tube while hot water flows downwards through the annulus. The arrangement lets students watch each stage of two phase flow and measure the heat transferred.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Designed for SES36 refrigerant gas, free of CFCs |
| Specification | Experimental tube built from two concentric glass tubes in counter current flow |
| Specification | Condensing chamber with pressure meter, safety valve and temperature sensors |
| Specification | Thermostatic bath with a 600 W heating resistance and centrifugal recirculation pump |
| Specification | Refrigerant inlet and outlet temperature sensors on the concentric tubes |
| Specification | Computer controlled version available as TFEC |
