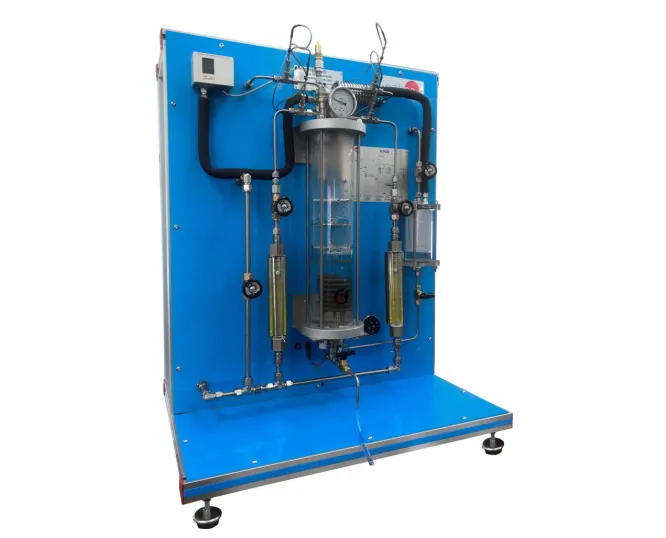

TCPGB: Film and Dropwise Condensation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Self contained unit with its own steam generator and two condensers, one natural copper for filmwise condensation and one gold plated for dropwise condensation. It gives both visual and quantitative results on heat transfer during condensation.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Investigation of the saturation pressure and temperature relationship for water between about 20 C and 100 C |
| Specification | Thick walled vertical glass steam chamber containing approximately 0.5 kg of water |
| Specification | Film condenser in natural copper with built in heat exchanger to preheat the cooling water |
| Specification | Dropwise condenser with gold plated external surface |
| Specification | Three equally spaced thermocouples on each condenser plus cooling water inlet and outlet thermocouples |
| Specification | Electrical heating resistance with control probe and thermostat against overheating |
