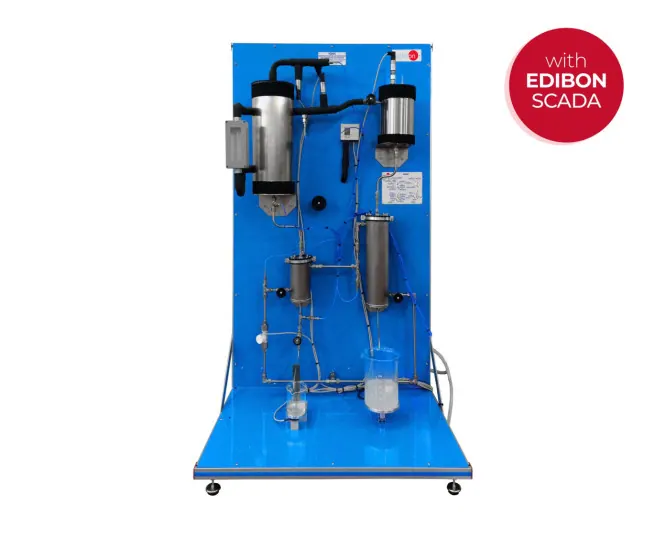

TCESC: Computer Controlled Separating and Throttling Calorimeter
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Unit for determining the moisture content and dryness fraction of steam. Wet steam is first separated by a series of obtuse angle changes of direction, then throttled into an expansion chamber, with pressure and temperature measured at each stage and the condensate weighed.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Separating calorimeter for direct determination of large water quantities, up to x = 0.5 |
| Specification | Throttling calorimeter for steam quality between 0.95 and 1.0 |
| Specification | Two coil condensers with condensate collection and weight measurement |
| Specification | Steam admitted through a computer controlled solenoid valve |
| Specification | Safety valve and pressure switch on the steam line |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
