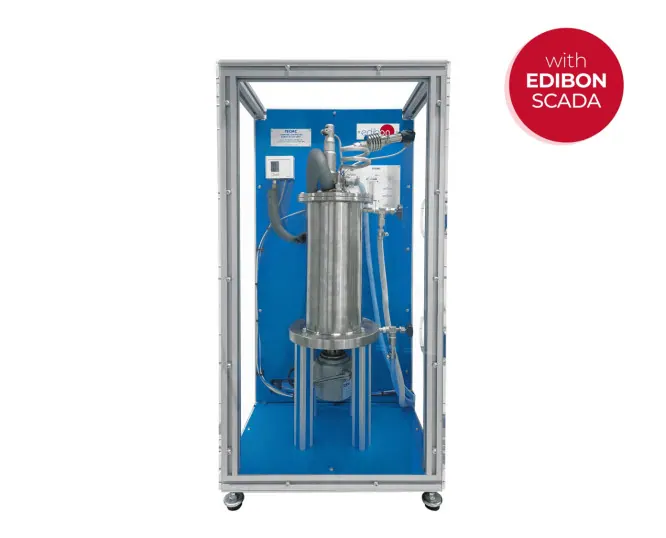

TECMC: Computer Controlled Marcet Boiler Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Marcet boiler for the experimental study of the relationship between pressure and temperature of saturated steam in equilibrium with water. Students plot the saturation curve, compare it with published steam tables and derive the Clausius Clapeyron equation.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Operating range from atmospheric pressure up to 18 bar |
| Specification | Thermally insulated stainless steel boiler with immersion heater and temperature limitation |
| Specification | Temperature and pressure sensors inside the boiler |
| Specification | Safety valve and high pressure switch limit the maximum working pressure |
| Specification | Transparent protection shields around the boiler |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
