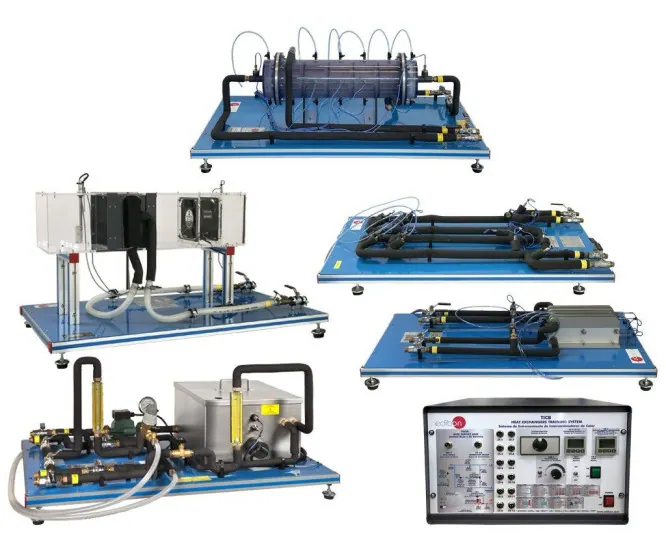

TICB: Heat Exchanger Training System
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Base service unit with a thermostatic bath and pump, to which a range of small scale exchangers can be fitted. Parallel and counter flow arrangements are compared, with regulation and measurement of both hot and cold water flows and temperatures.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | TIUSB base service unit heats water in a thermostatic bath and pumps the hot water |
| Specification | Regulation and measurement of cold and hot water flows and inlet and outlet temperatures |
| Specification | Measurement of the pressure drop in the exchanger |
| Specification | Exchangers available include concentric tube, extended concentric tube, plate, extended plate and shell and tube |
| Specification | Further exchangers include jacketed vessel, coil vessel, turbulent flow and cross flow |
| Specification | Computer controlled version available as TICC |
