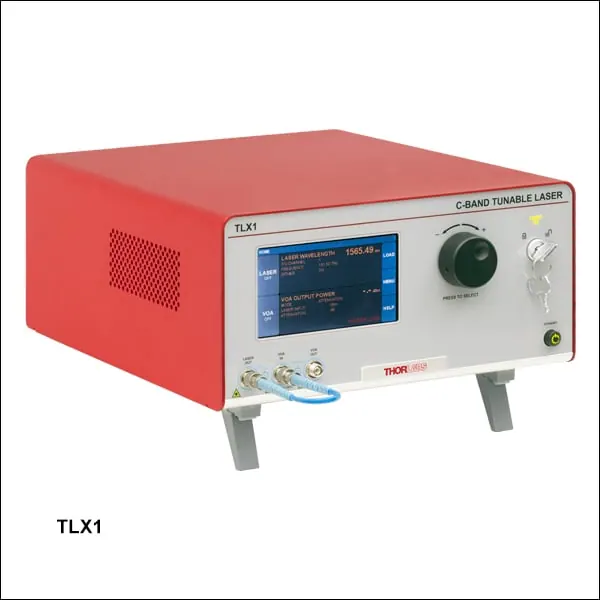

TLX Series Fiber-Coupled Benchtop Tunable Laser Sources
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Temperature controlled external cavity lasers tunable across the telecom C-band or L-band on the ITU 50 GHz grid. A built-in variable optical attenuator sets output power, and the narrow linewidth suits component test and coherent measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| TLX1 tuning range | 1528 to 1566 nm; TLX2: 1570 to 1609 nm |
| Optical output power | 13.5 dBm typical |
| Intrinsic linewidth | 10 kHz typical |
| Tuning resolution | 50 GHz, fine tuning 1 MHz over plus or minus 30 GHz |
| Side mode suppression ratio | 55 dB typical |
| Specification | Control by touchscreen, USB or RS-232; full PM fibre optical path |
