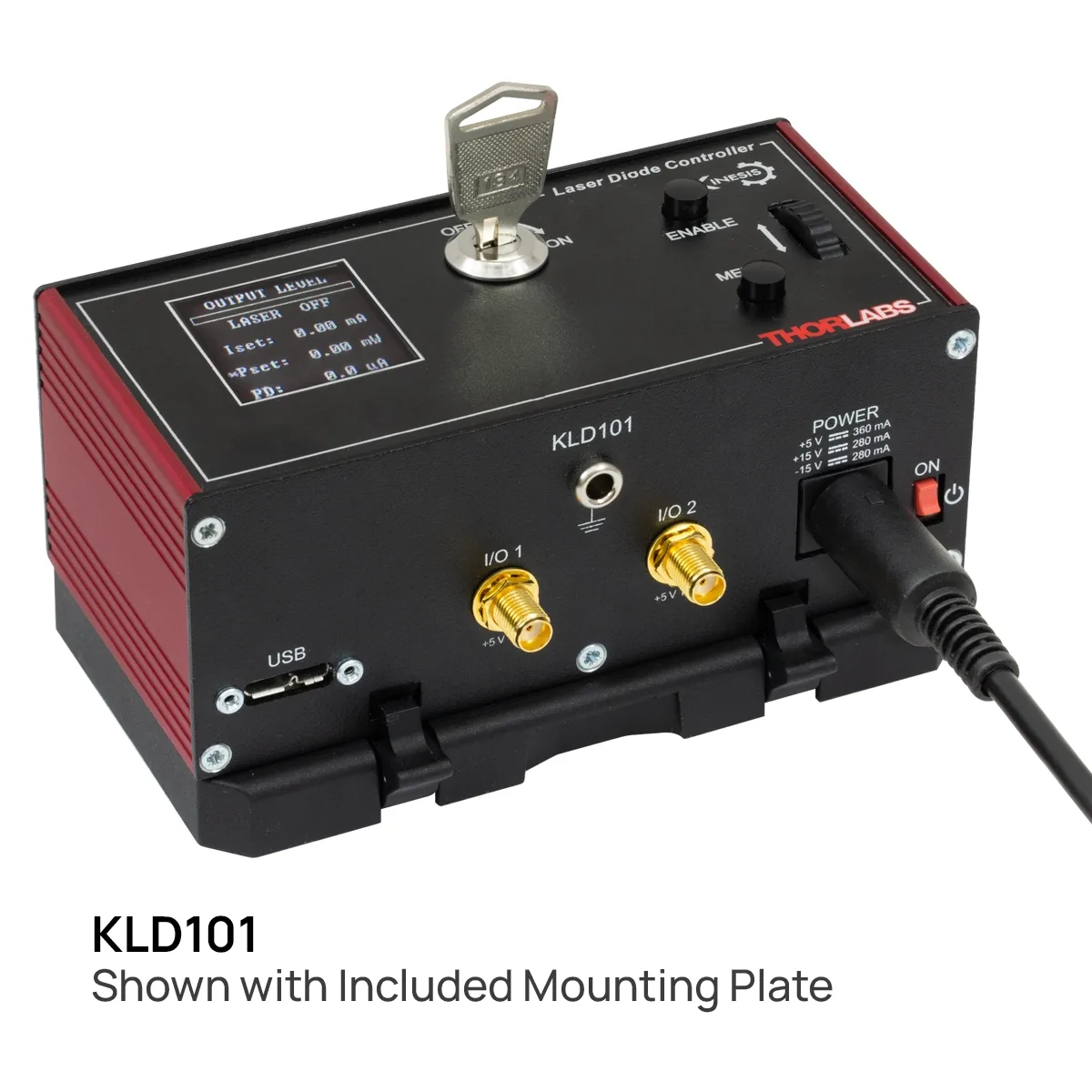

KLD101 K-Cube Laser Diode Driver
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A compact laser diode driver that runs in constant current or constant power mode, with an adjustable current limit to protect the diode. It can be set from the front panel and display or driven from a PC over USB using the Kinesis software suite.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum laser diode current | 230 mA |
| Compliance voltage | up to 10 V at 50 mA, greater than 7 V at 230 mA |
| Current setting resolution | less than 8 microamps |
| Current noise | less than 3.5 microamps RMS typical at 46 mA over 20 ohms |
| Modulation bandwidth | 20 kHz full depth |
| Housing | 121.0 mm x 60.0 mm x 47.0 mm, safety key switch and interlock |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
