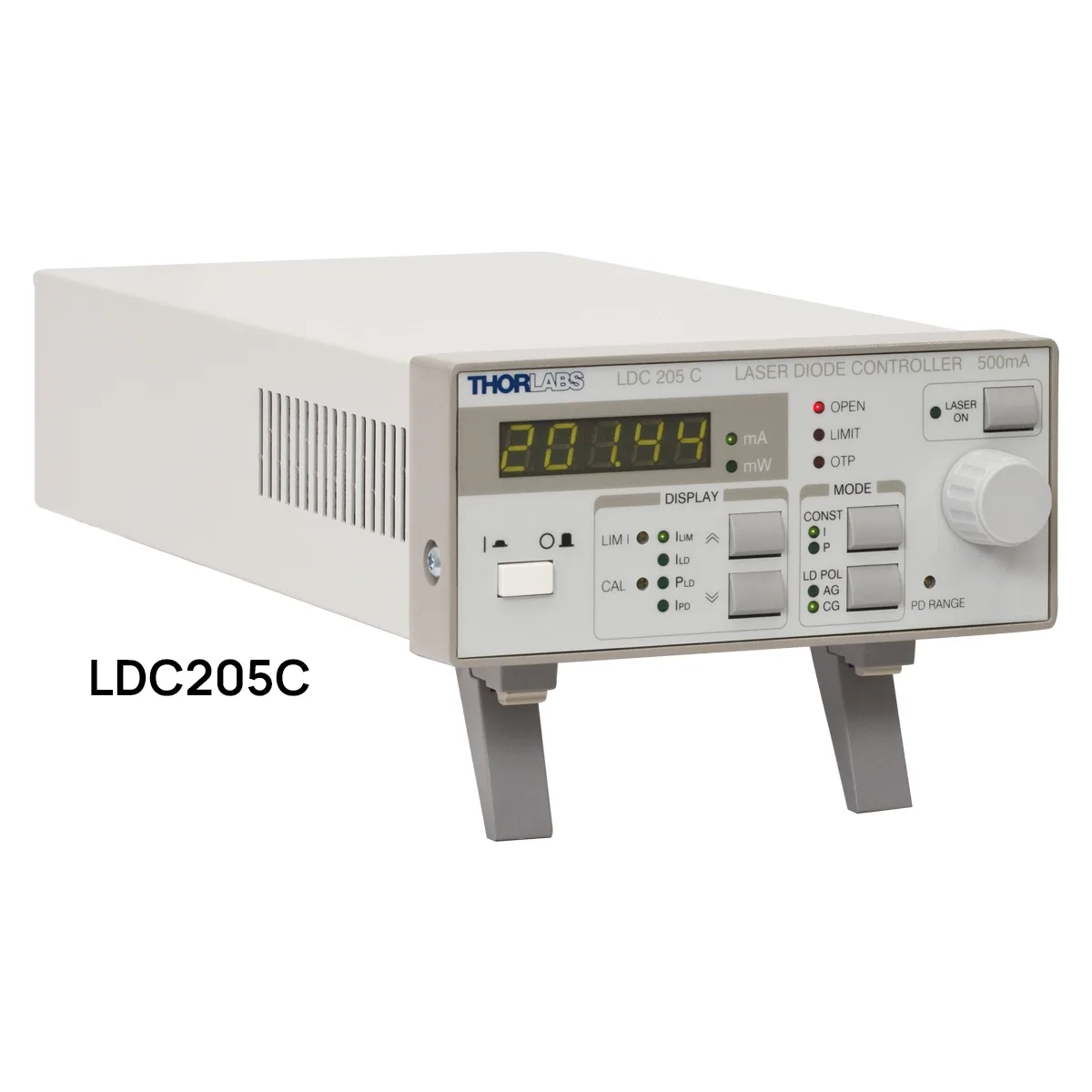

LDC200C Series Laser Diode Drivers, 20 mA to 4 A
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Seven benchtop laser diode controllers covering currents from 20 mA to 4 A, in constant current or constant power mode. The diode is driven with respect to ground, which improves noise and transient behaviour, and every unit ships with a calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Seven models with control ranges from 0 to plus or minus 20 mA up to 0 to plus or minus 4 A |
| Noise without ripple | less than 0.2 microamps on the LDC201CU |
| Compliance voltage | greater than 10 V on the LDC202C, LDC205C and LDC210C |
| Temperature coefficient | less than 50 ppm per degree C |
| Specification | Works with all laser diode and photodiode polarities |
| Specification | 5-digit LED display with analogue control input and output |
