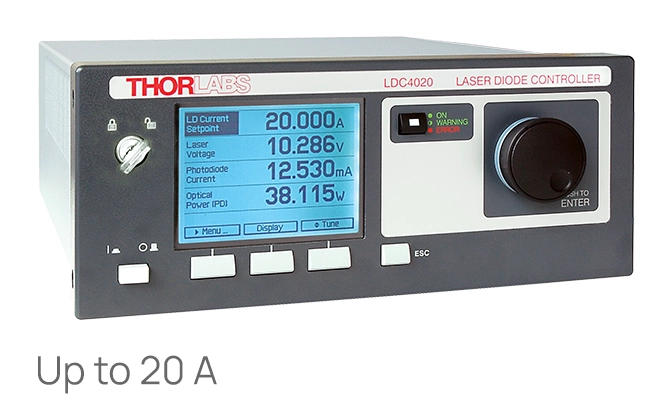

LDC4000 Series High-Power Laser Diode Controllers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Benchtop drivers for high power laser diodes, offered at 5 A and 20 A with continuous wave or quasi-continuous wave operation. An internal function generator supplies sine, square and triangle modulation, and control is over a SCPI compliant USB interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser current control range | 0 to 5 A (LDC4005) or 0 to 20 A (LDC4020) |
| Compliance voltage | 12 V (LDC4005) or 11 V (LDC4020) |
| Current accuracy | plus or minus (0.1% + 2 mA) on the LDC4005 |
| Noise and ripple with filter | less than 50 microamps RMS on the LDC4005 |
| QCW pulse width range | 100 microseconds to 1 s |
| Internal modulation bandwidth | 20 Hz to 100 kHz |
