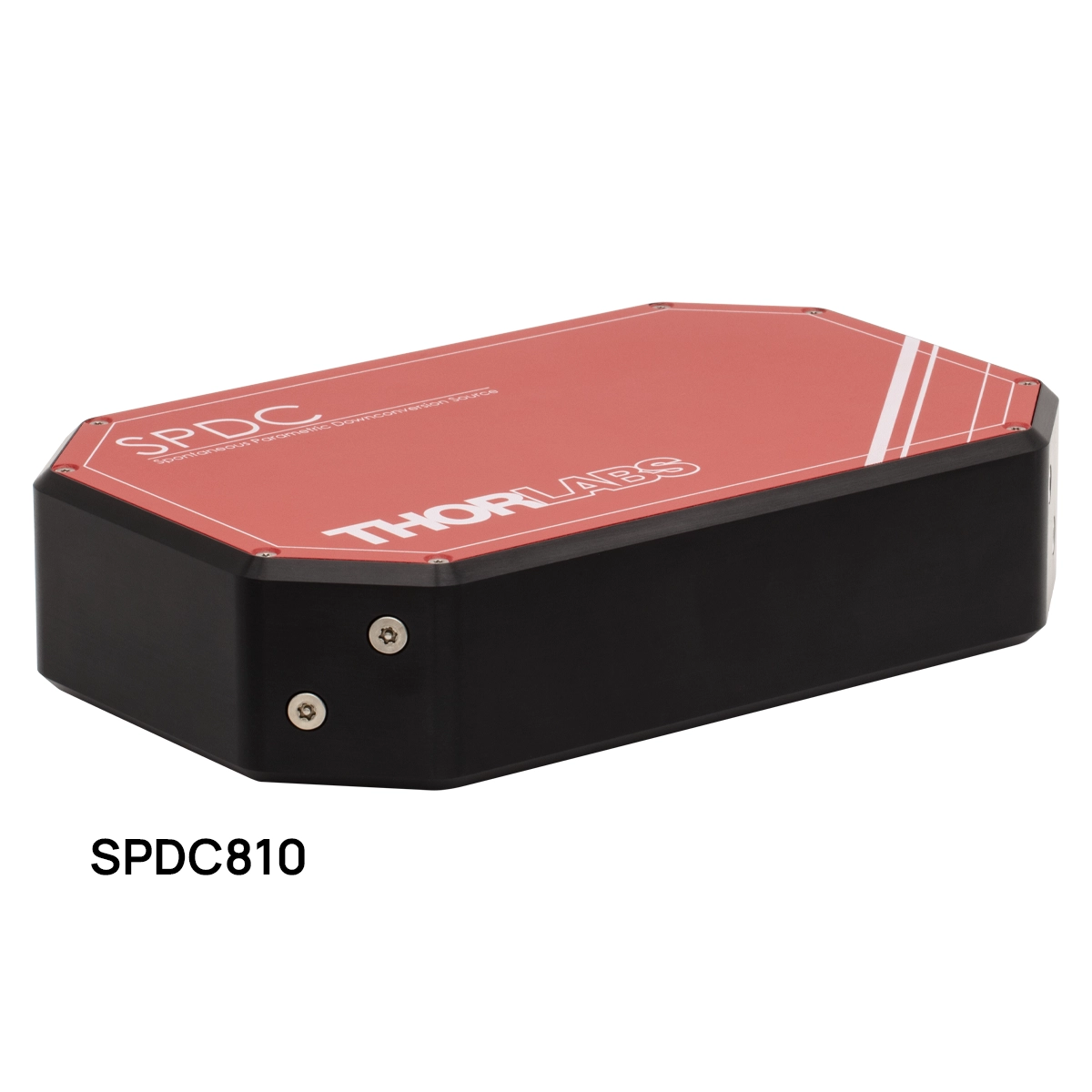

SPDC Series Correlated Photon-Pair Sources
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Turnkey spontaneous parametric down-conversion sources with an integrated pump laser, using periodically poled KTP crystals for collinear type-II output. They generate correlated photon pairs near 810 nm or 1560 nm for quantum optics teaching and research.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating wavelengths | 810 nm or 1560 nm |
| Photon bandwidth | about 10 nm (SPDC810) or less than 0.25 nm (narrowband models) |
| Maximum coincident pairs per second | greater than 450 000 (SPDC810) |
| Heralding ratio | greater than 0.45 (SPDC810), greater than 0.30 (narrowband) |
| Second order correlation g2 at zero delay | less than 0.1 |
| Crystal type | PPKTP for type-II SPDC; remote operation via software |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
