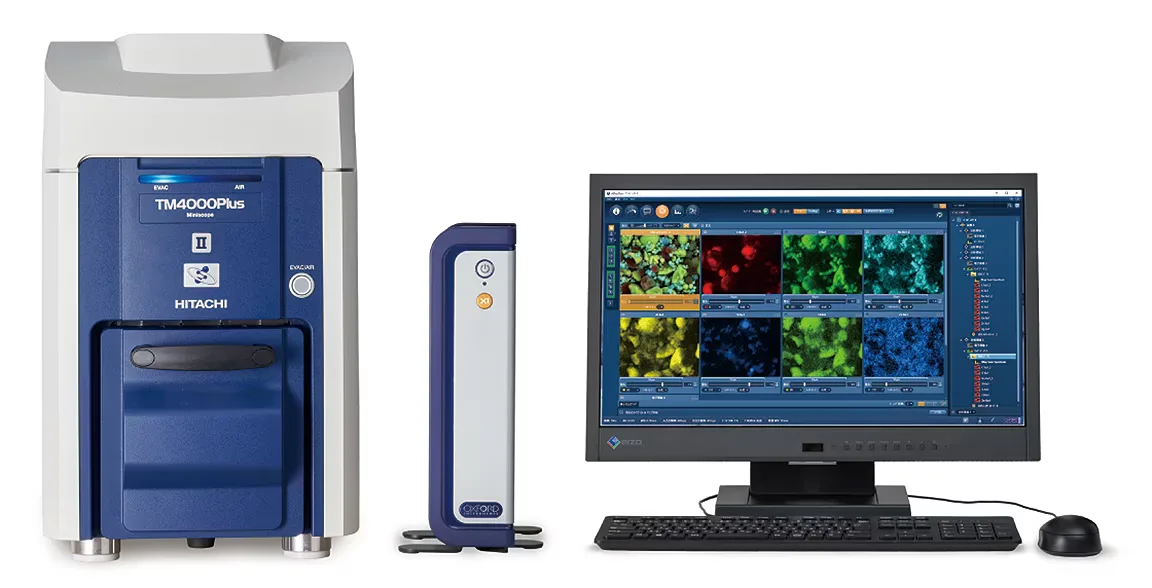

TM Series Energy Dispersive X-ray Spectrometers: AZtec Series
Brand: Hitachi High-Tech | Category: Nanotechnology
The AZtec series gives the TM series tabletop microscopes a choice of EDS systems, with built-in detectors made by Oxford Instruments and an energy resolution of 129 eV (Mn-Ka) available in all classes. Hitachi list three configurations: AZtecOneXplore as standard, AZtecLiveOneXplore with the live EDS function, and AZtecLiveLite as the multi-featured analysis instrument. The TruMap feature separates multi element spectra and subtracts background in real time so that element maps are free of contamination from overlapping peaks, while pile-up correction and TruQ technologies support high throughput analysis. AZtecLiveLite adds large area mapping and particle analysis through a motorised stage.
Plan your specification
Specify the AZtec package for your Hitachi TM
Hitachi lists distinct AZtec EDS packages for its TM series. Name the microscope model and required analysis functions so the offer identifies the correct detector and software combination.
- Microscope compatibility
- Provide the exact SEM model, ports, stage, other detectors and computer details. Request written confirmation of mechanical fit, interfaces and installation responsibilities.
- Exact package and analysis functions
- Confirm which live-spectrum, mapping and automation functions are included or optional. Check any motorised-stage and software requirements against the installed TM configuration.
- Software and acceptance scope
- List licences, data exports, workstation, training and the sample demonstration in the offer. Agree what will be checked after installation and the support terms.
Product documentation
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Detector type | Silicon drift detector (SDD) |
| Detector area | 30 mm² |
| Energy resolution at Cu Kα | 151 eV |
| Equivalent resolution at Mn Kα | 129 eV or less, as specified by Hitachi |
| Element range | Boron (B, 5) to uranium (U, 92) |
Hitachi AZtec-series data for TM microscopes. AZtecOne, AZtecLive One and AZtecLive Lite are different configurations; confirm the detector, software licence and microscope compatibility before comparing options. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Specimen or clinical application and required imaging/measurement outputs
- Optics/source, detectors, working distance, stage and documentation options
- Room conditions, utilities, preparation accessories and operator training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- SEM model, port and existing detector configuration
- Sample types, target elements and required outputs
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
