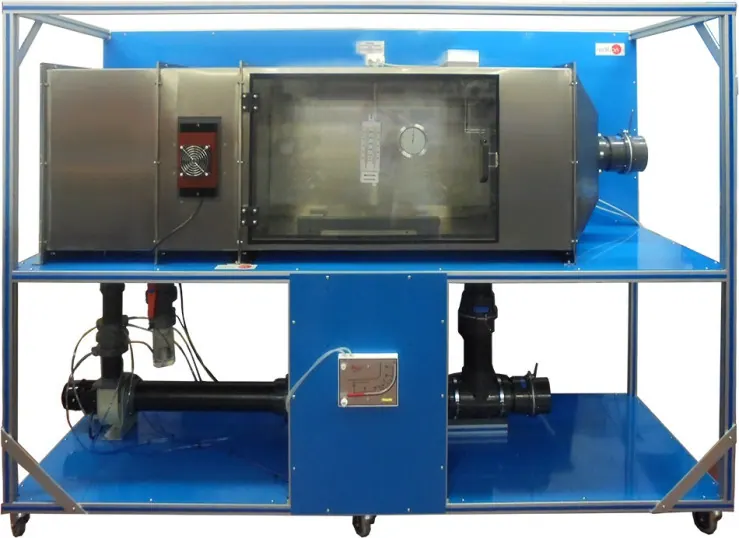

TMHA: Air Humidity Measurement Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Stainless steel duct fitted with several humidity instruments so that their accuracy can be compared. The duct can be humidified with an ultrasonic atomiser and dehumidified with a Peltier element, and a variable flow fan shows the effect of airflow on each instrument.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Hair hygrometer, synthetic fibre humidity sensor, capacitive humidity sensor and wet and dry bulb hygrometer |
| Specification | Ultrasonic atomiser for humidification and Peltier cooling element for dehumidification |
| Specification | Variable flow rate fan with recycled air or room air configurations |
| Specification | Air flow calculated from the pressure drop across an orifice plate |
| Specification | Inclined manometer measures the orifice plate pressure drop |
| Specification | Transparent window in the duct for taking readings and changing instruments |
