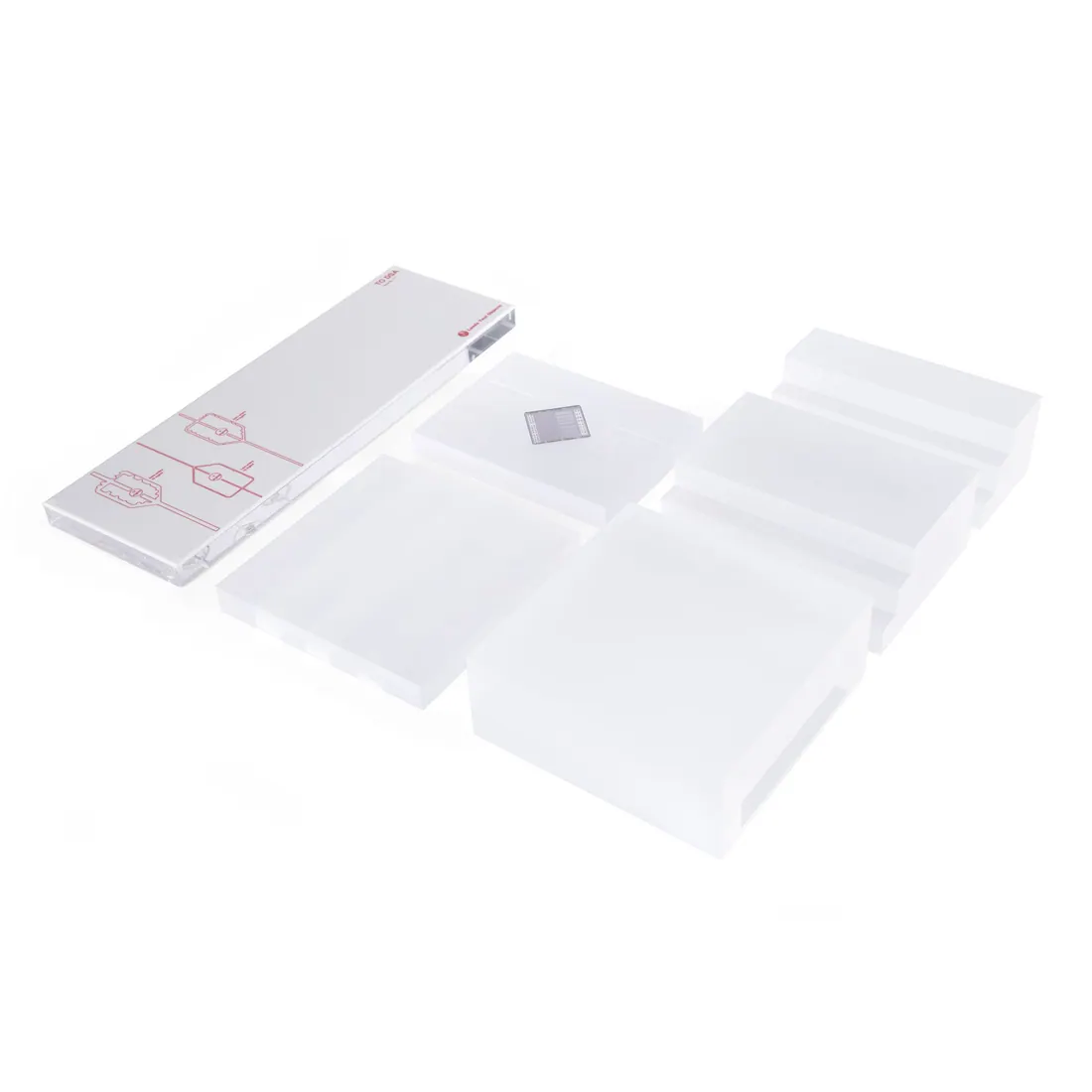

TO DSA
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A modular phantom set for quality control of digital subtraction angiography image quality. Separate vessel, resolution, bone, slot and step wedge blocks let the user assess dynamic range, iodine contrast resolution, uniformity, linearity and mis-registration artefacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Includes vessel and blank block, spatial resolution block, bone block and slot block |
| Specification | Step wedge in two parts and a mis-registration insert |
| Specification | Measures video system stability, dynamic range and spatial resolution |
| Specification | Measures contrast (iodine) resolution, contrast uniformity and contrast linearity |
| Specification | Measures spatial uniformity and mis-registration artefacts |
| Specification | Conforms to AAPM Report 15 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
