TO MTF
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

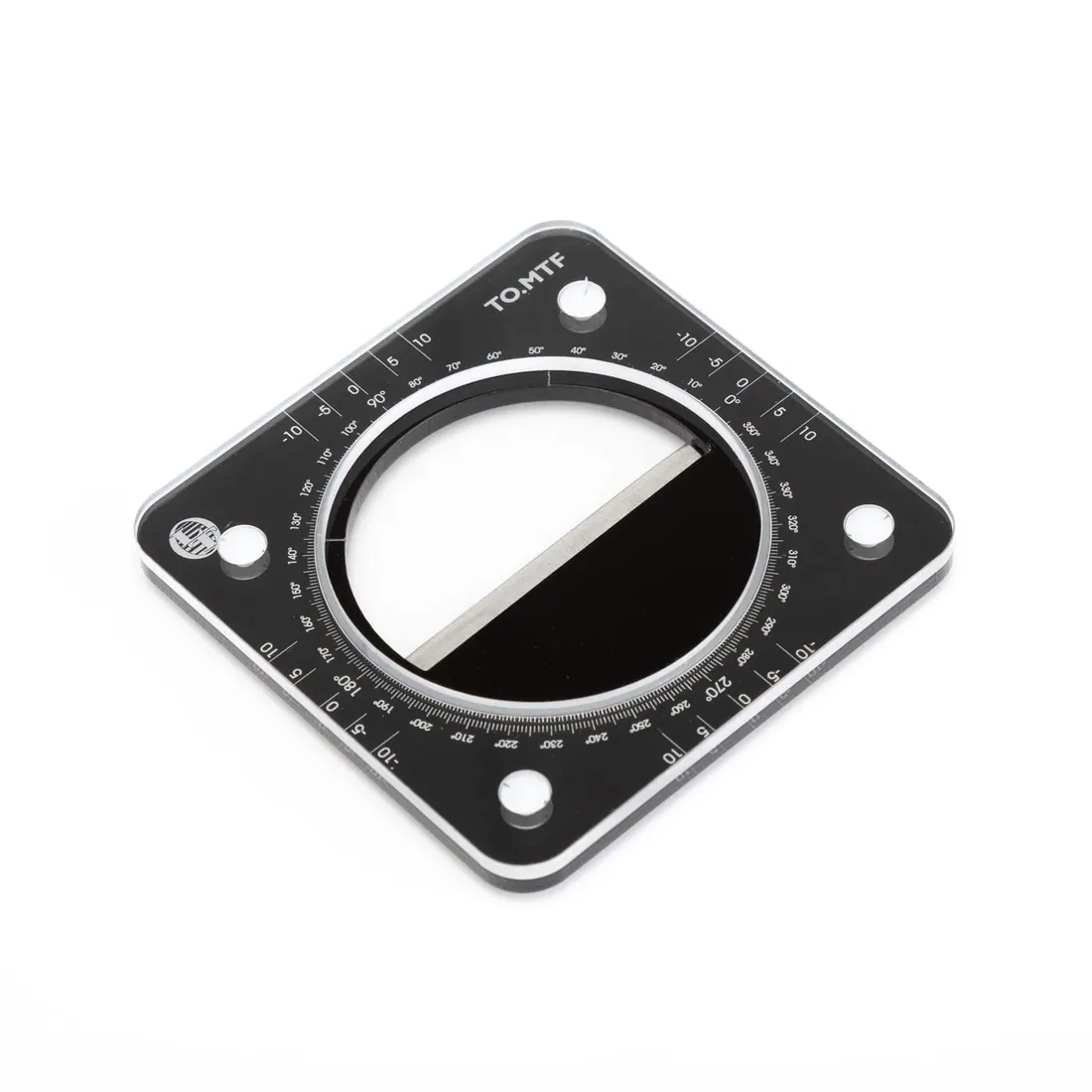

An MTF edge device comprising a tungsten plate mounted on an angulation wheel, so the edge angle can be set repeatably. It is used to measure the modulation transfer function of digital x-ray detectors and is supplied with free analysis software.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 1 mm thick tungsten plate, 50 mm diameter |
| Specification | Tungsten purity 90% or better |
| Specification | Edge accuracy 5 microns |
| Specification | Repeatable angular adjustment |
| Specification | Free software included |
| Conforms to IEC 62220-1 | 2004, IEC 62220-2:2007 and IEC 62220-3:2008 |
