TO XR21
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

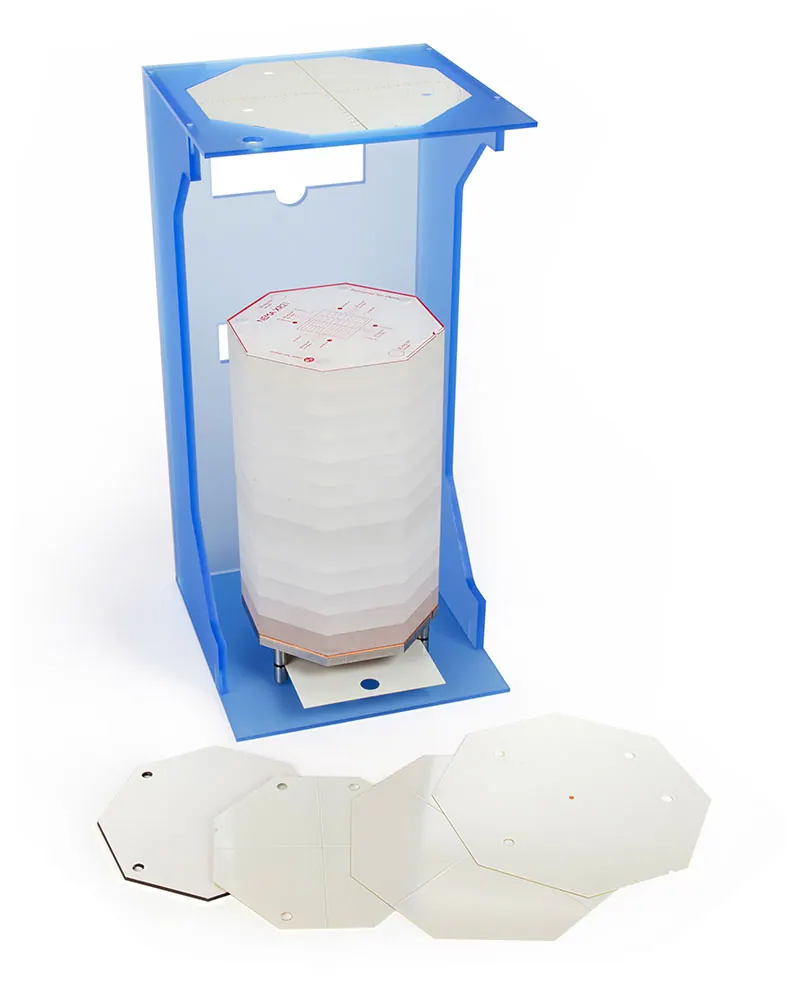

A PMMA phantom that lets the user check interventional fluoroscopy image quality to the NEMA XR21 standard. The plates stack in 25 mm steps up to 300 mm so a range of patient sizes can be simulated in one test session.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Modular stacking plates, thickness varied in 25 mm steps up to 300 mm |
| Material | PMMA |
| Specification | Measures spatial resolution, contrast (iodine) resolution and radiation field size |
| Specification | Measures beam alignment, working thickness range and x-ray to light field alignment |
| Specification | Motion blur measured with a rotating spoke |
| Specification | Conforms to NEMA XR21 standard |
