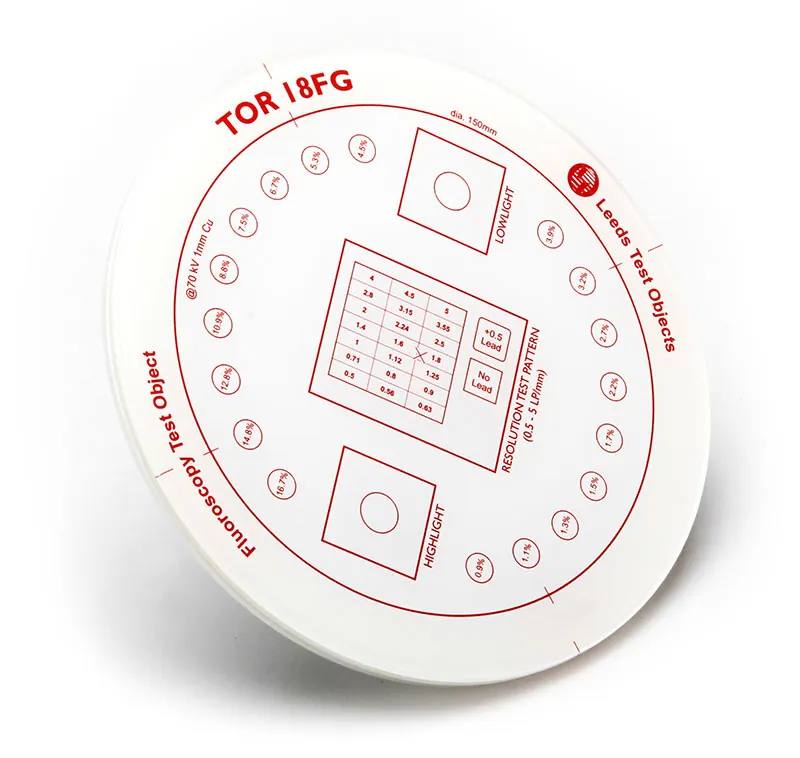

TOR 18FG
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A routine fluoroscopy and fluorography test object designed for weekly or monthly use. After a grey scale check the user counts the details detected and the bar patterns resolved, giving a simple repeatable score that reveals any drift in imaging performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution limit | 0.5 to 5.0 LP/mm |
| Low contrast large detail detectability | 18 details, 8 mm diameter |
| Specification | Monitor brightness and contrast adjustment using highlight and lowlight details |
| Specification | Circular geometry check using a lead circle |
| Specification | Supplied in a protective case with 1 copper filter, 1.0 x 150 x 150 mm |
| Specification | Smaller field of view versions available on request for mini C-arms |
