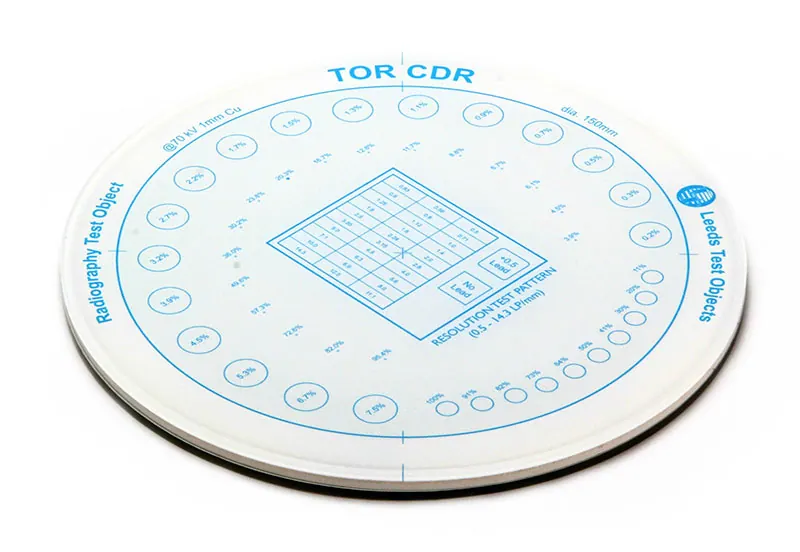

TOR CDR
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A routine radiography test object for conventional and non-subtractive digital radiography and fluorography. Image quality is scored by counting the details detected and the bar patterns resolved after an initial grey scale check, so trends in performance show up quickly.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensitometric measurements | 10 test point details, 5.6 mm diameter |
| Resolution limit | 0.5 to 14.3 LP/mm |
| Low contrast large detail detectability | 17 details, 11 mm diameter |
| High contrast small detail detectability | 17 details, 0.5 mm diameter |
| Specification | Can be used to assess the relative performance of different screen film combinations |
| Specification | AutoPIA automatic analysis software available for this phantom |
