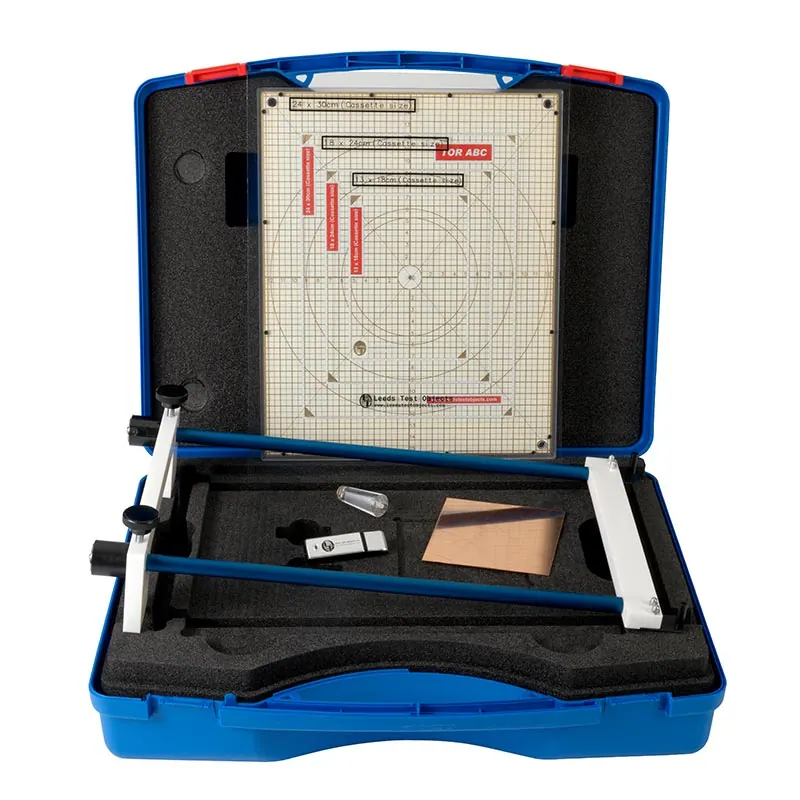

TOR ABC
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A beam alignment test object for routine weekly or monthly checks on radiography and fluoroscopy systems. It shows whether the light field matches the radiation field, locates the central beam and confirms the central beam angle deviation from perpendicular is within limits.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Checks correspondence of the light field with the effective radiation field |
| Specification | Determines the position of the central beam |
| Specification | Checks central beam angle deviation from 90 degrees relative to the detector plane |
| Specification | Available on its own or with the hanger or suction vertical bucky jig |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
