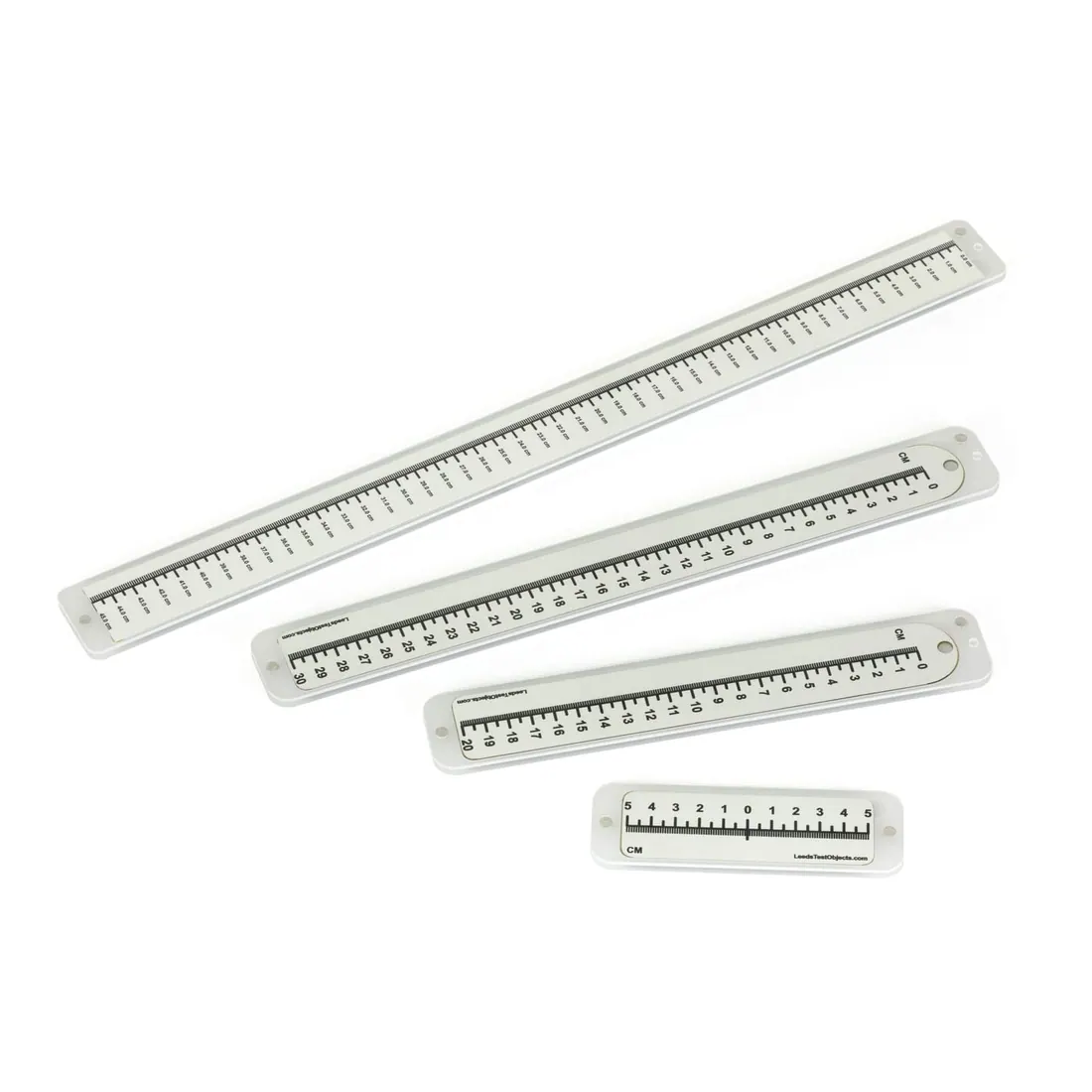

VISIRAY Rulers
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
Radiopaque and phosphorescent rulers used to check the congruence between the light field, the radiation field and the x-ray image field. The phosphor coating lights up under x-rays and shows no significant afterglow, so a darkened room and a camera are needed.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Radiopaque markings, 1 mm |
| Specification | Visible markings, 1 mm |
| Specification | Phosphor coating active 28 to 120 kV |
| Specification | Removable protective casing |
| Sizes | 45 cm, 30 cm, 20 cm and 10 cm, bespoke sizes on request |
| Specification | Requires a darkened room and a video capture device |
