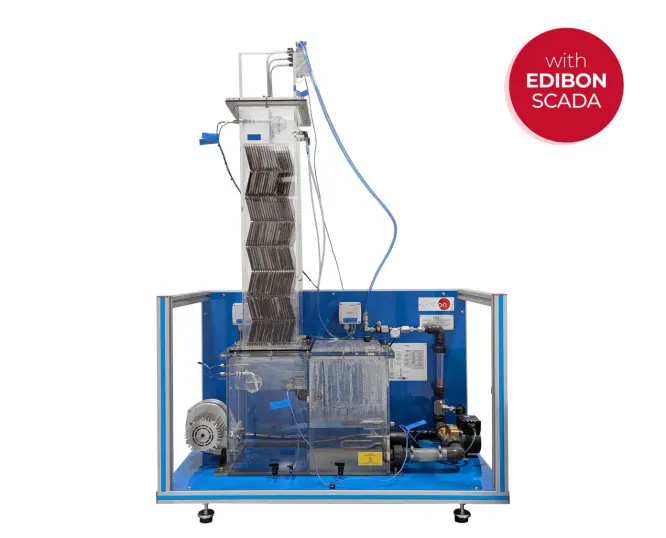

TTEC: Computer Controlled Bench Top Cooling Tower
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench top cooling tower in which heated water is pumped to distribution manifolds at the top of the packing while air is drawn upwards. Students measure approach, range and cooling capacity and construct the energy and mass balance for the tower.
Technical Specifications
| Parameter | Value |
|---|---|
| Air propeller with a fan with speed computer controlled | 145 m³/h max, 3000 rpm |
| Water tank, capacity | 14 l |
| Flow sensor, range | 0.25 to 6.5 l/min |
| Heating element, computer controlled | 60 °C max |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
