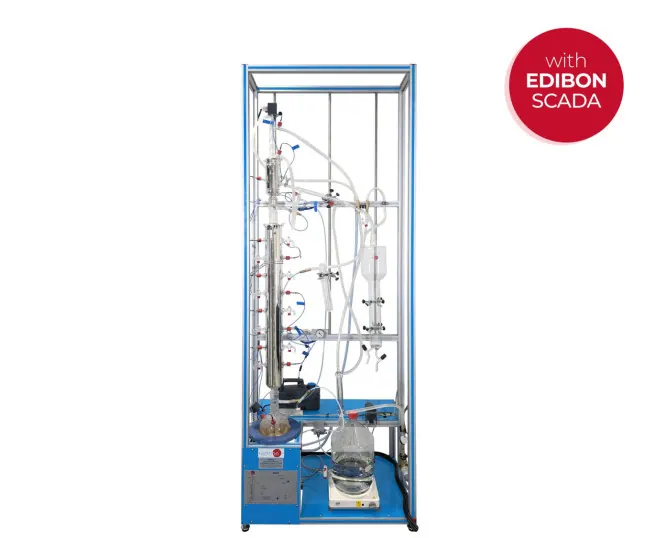

UDCC: Computer Controlled Continuous Distillation Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A continuous distillation unit with a boiler that accepts interchangeable columns, an eight plate column and a packed column with Raschig rings being supplied. Students compare plate and packed operation and study reflux ratio, plate efficiency and product composition.
Technical Specifications
| Parameter | Value |
|---|---|
| Internal diameter | 50 mm |
| Distillation collector of graduated glass, capacity | 2 l |
| Feed vessel, capacity | 10 l |
| Specification | Vacuum pump that allows to decrease the atmospheric pressure to 0.5 bar |
| Flow sensor, range | 0.25 to 6.5 l/min |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
