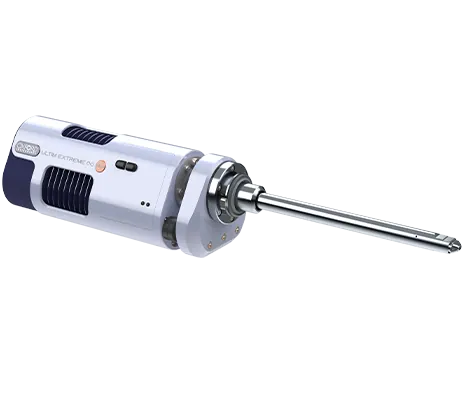

Ultim Extreme Infinity
Brand: Oxford Instruments | Category: Nanotechnology
Ultim Extreme Infinity is a windowless energy dispersive X-ray detector for ultra high resolution field emission SEM. Its shaped sensor sits close to the sample at very short working distance, so elemental analysis can be run at the low kV used for nanomaterials and surfaces.
Plan your specification
Define your low-voltage EDS requirement
Ultim Extreme Infinity uses a windowless design for demanding low-voltage analysis. Confirm the microscope geometry and specimen requirements before selecting the configuration.
- Microscope compatibility
- Provide the exact SEM model, ports, stage, other detectors and computer details. Request written confirmation of mechanical fit, interfaces and installation responsibilities.
- Low-energy signal and operating conditions
- State target elements, beam voltage, working distance and sample sensitivity. Ask for performance evidence on relevant samples and the detector handling requirements.
- Software and acceptance scope
- List licences, data exports, workstation, training and the sample demonstration in the offer. Agree what will be checked after installation and the support terms.
Product documentation
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Windowless design with specially shaped sensor and small electron trap |
| Resolution guaranteed at C K | 46 eV or better at all count rates up to 50,000 cps |
| Solid angle | 7 to 8 times that of a typical 100 mm2 conventional EDS detector |
| Specification | Operates at very low accelerating voltage, for example 1 kV to 3 kV |
| Specification | Tru-Q IQ spectrum processing |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- SEM model, port and existing detector configuration
- Sample types, target elements and required outputs
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
